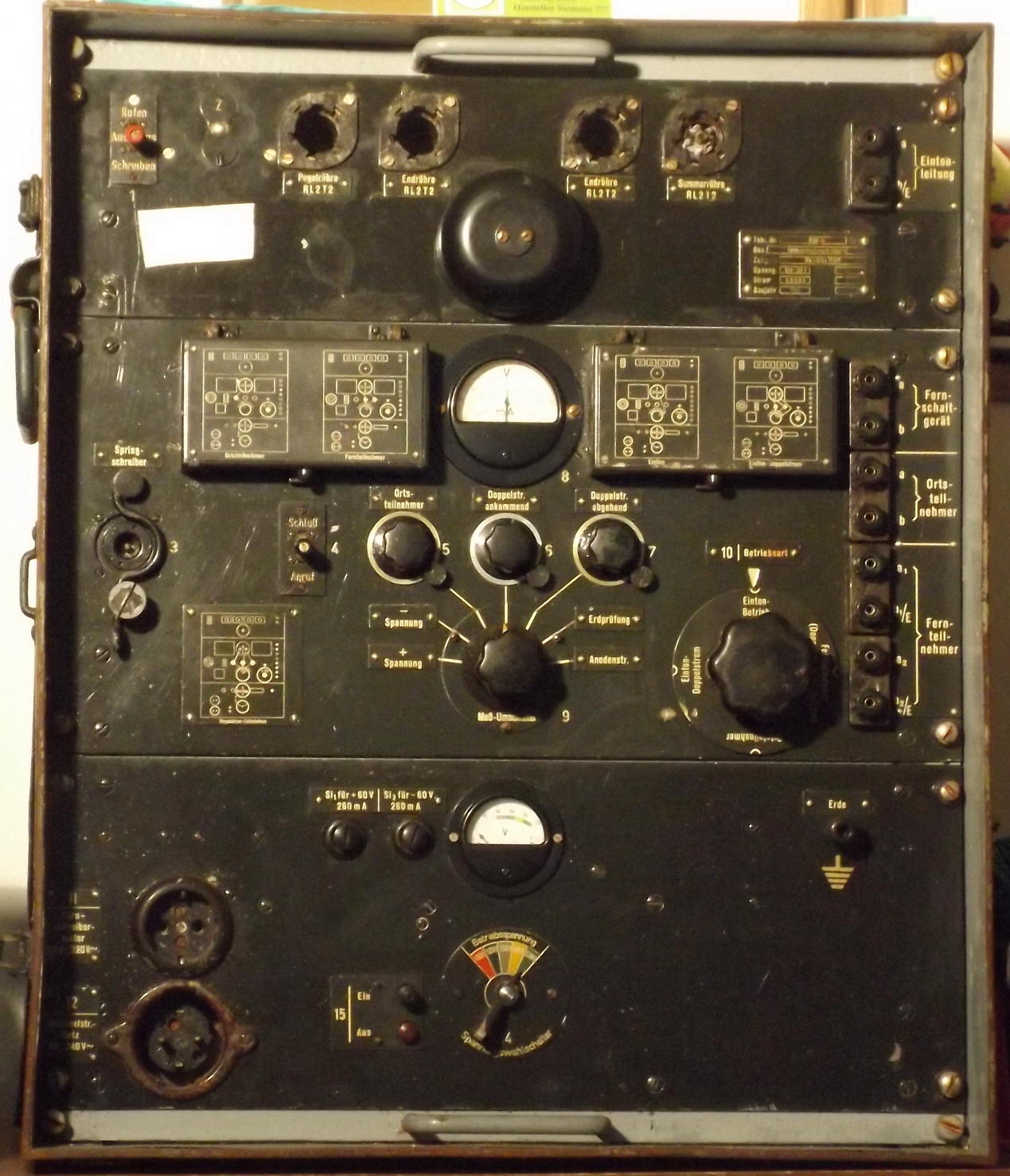

val Posted October 22, 2018 Posted October 22, 2018 I'm looking for manuals, schematics and nice close up images of the Springschreibanschlussgerät (also known as Fernschreibanschlussgerät). This is the device.

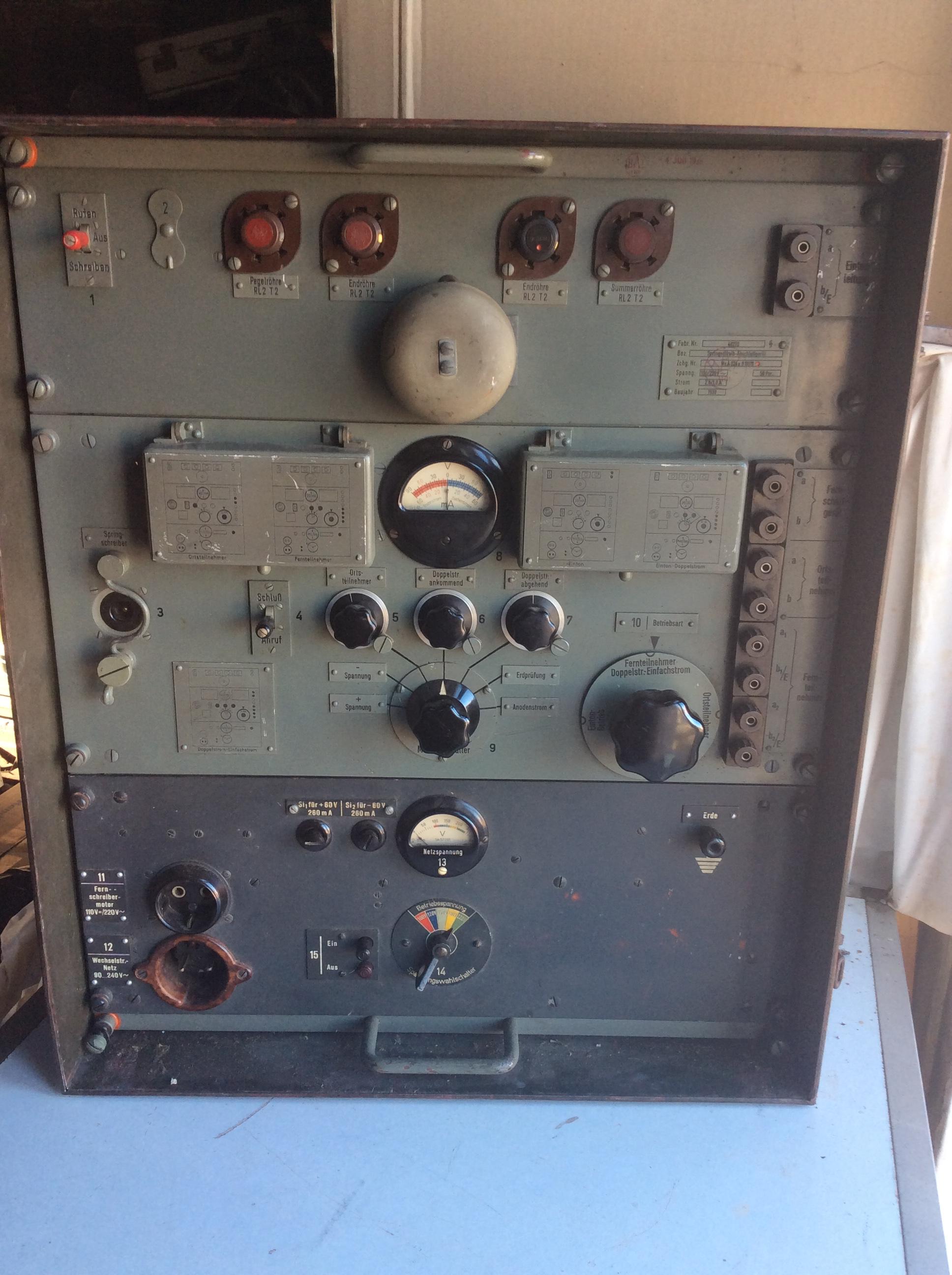

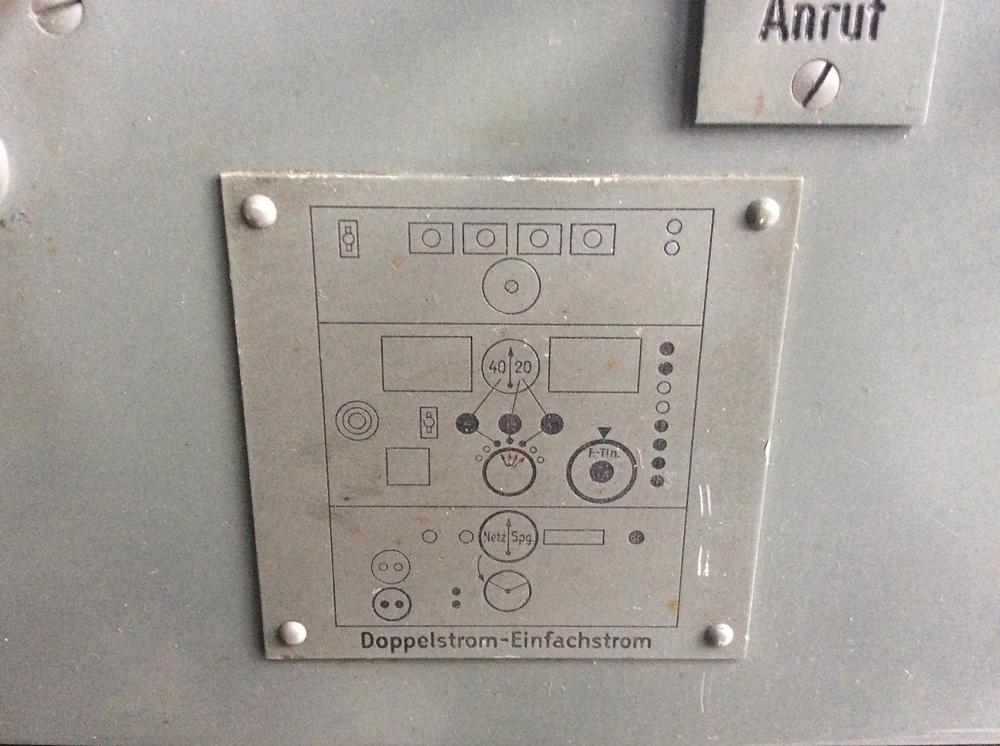

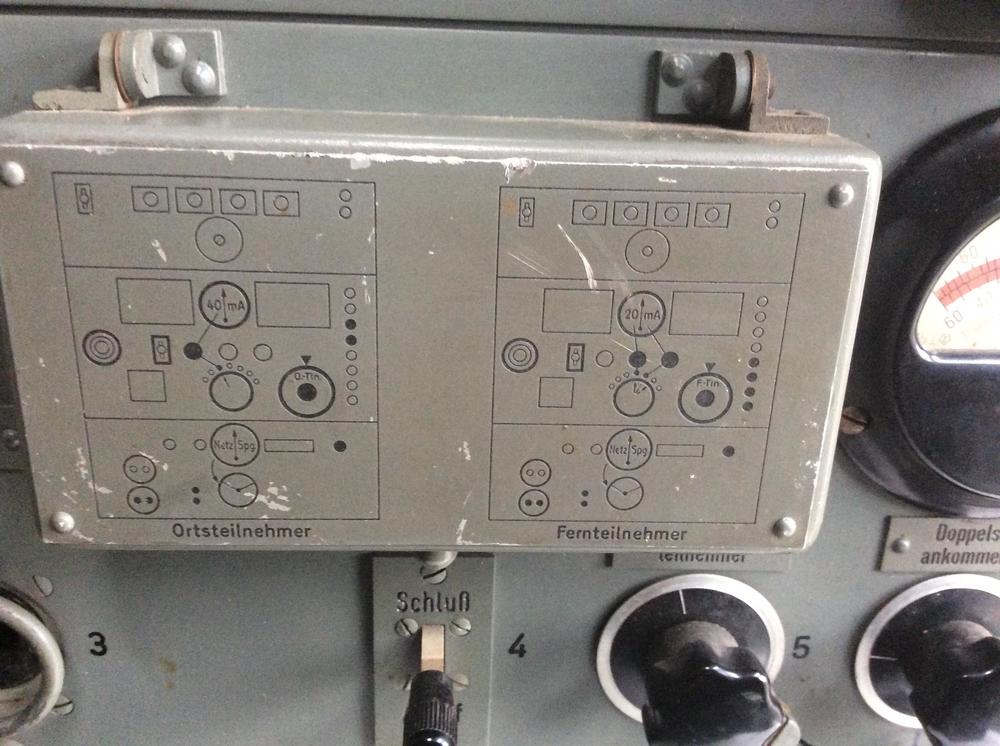

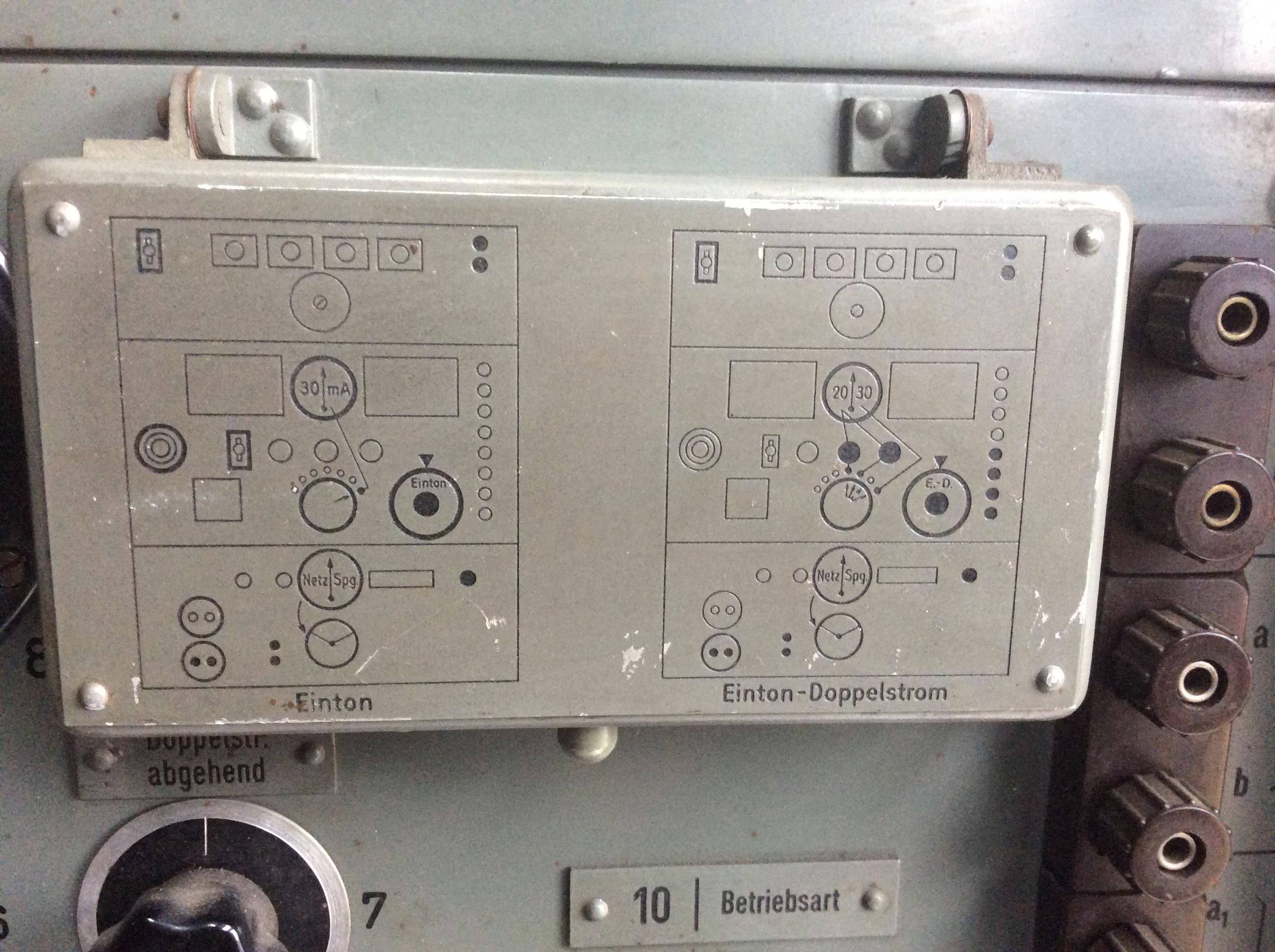

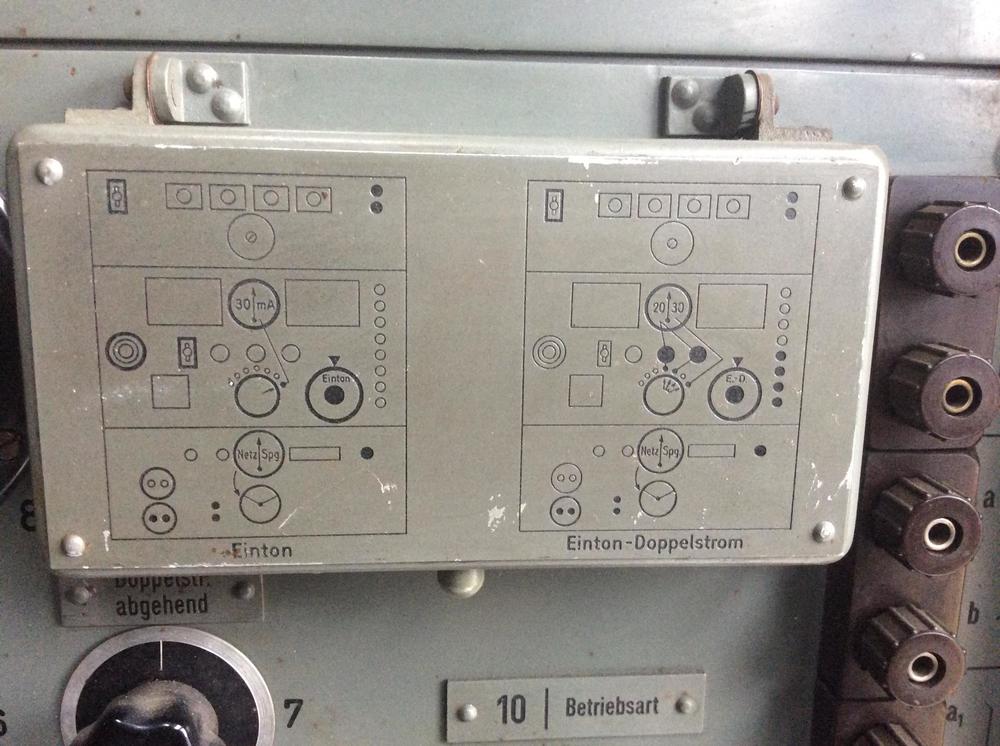

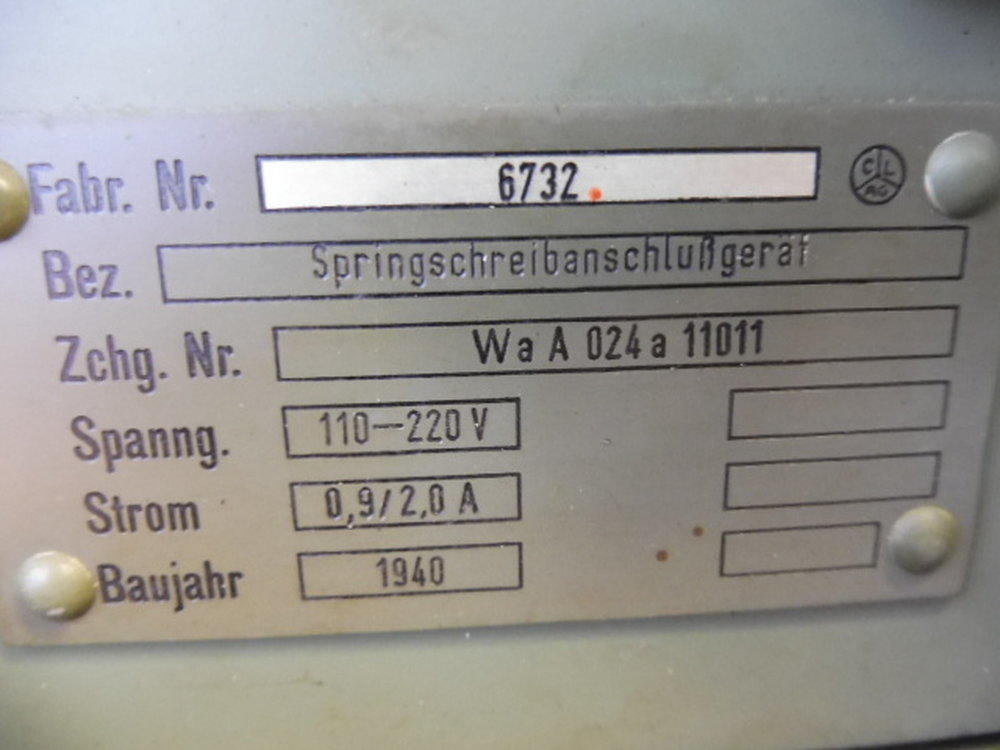

val Posted October 23, 2018 Author Posted October 23, 2018 1 hour ago, tornfuté said: A picture like this? No manual Thanks Pierre. Can you also make a close up pictures of those 5 labels where configuration examples are shown? Here's one from Kpemig, this has a fuzzy images. https://www.kpemig.de/Springschreibanschlussgeraet-Wehrmacht-datiert-1940-Fernschreibanschlussgeraet-Das-Gehaeuse-vermutlich-nachlackiert-die-Frontplatte-originallack-Funktion-nicht-geprueft-Gewicht-393-kg Type shield is also little bit different from yours.

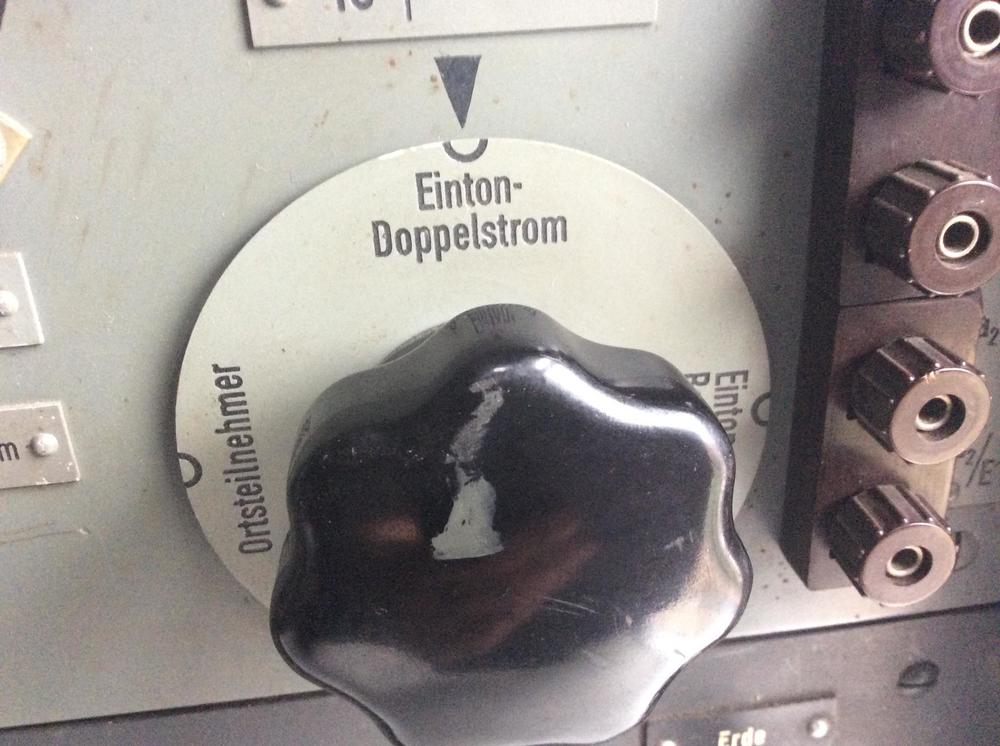

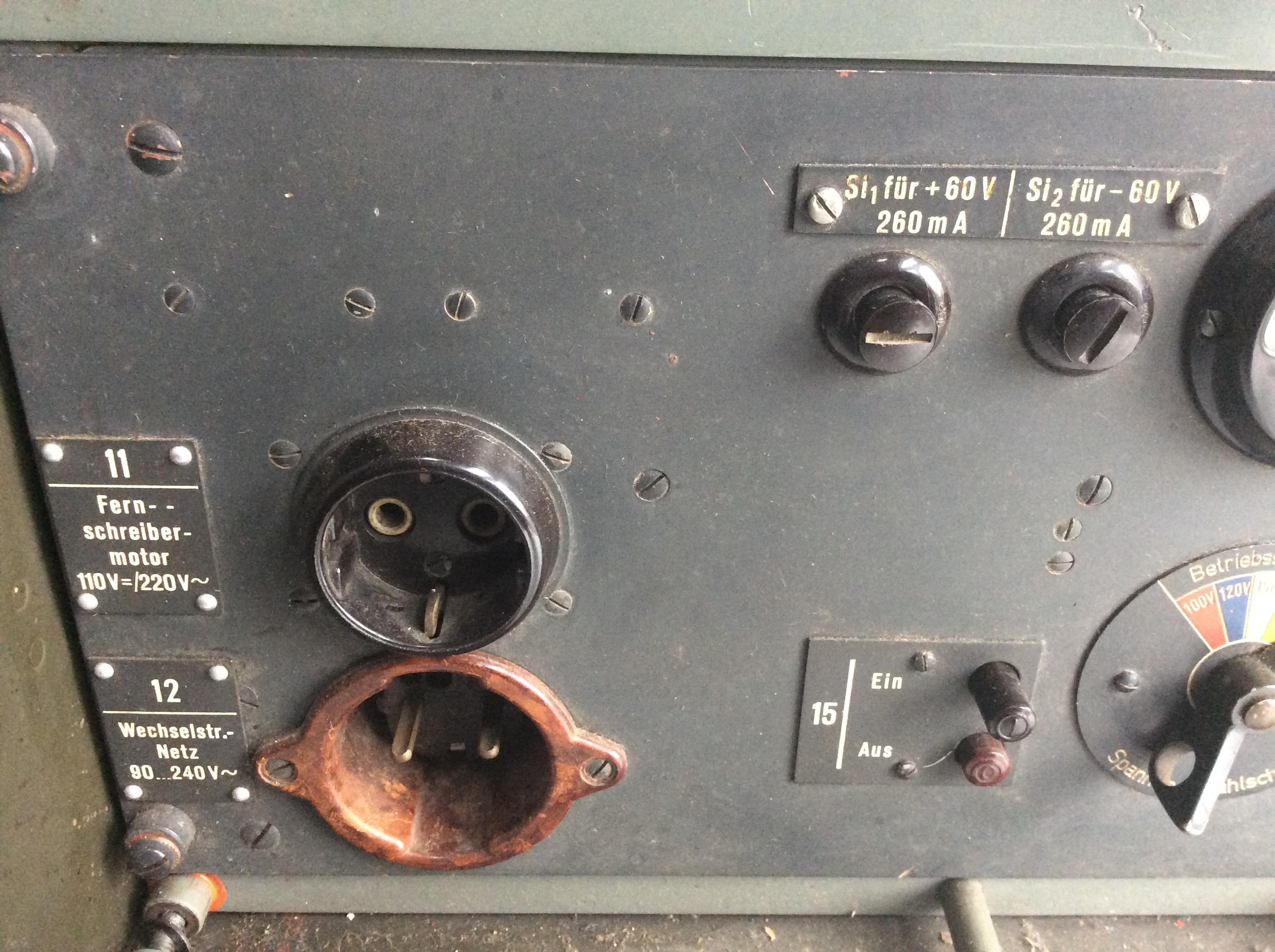

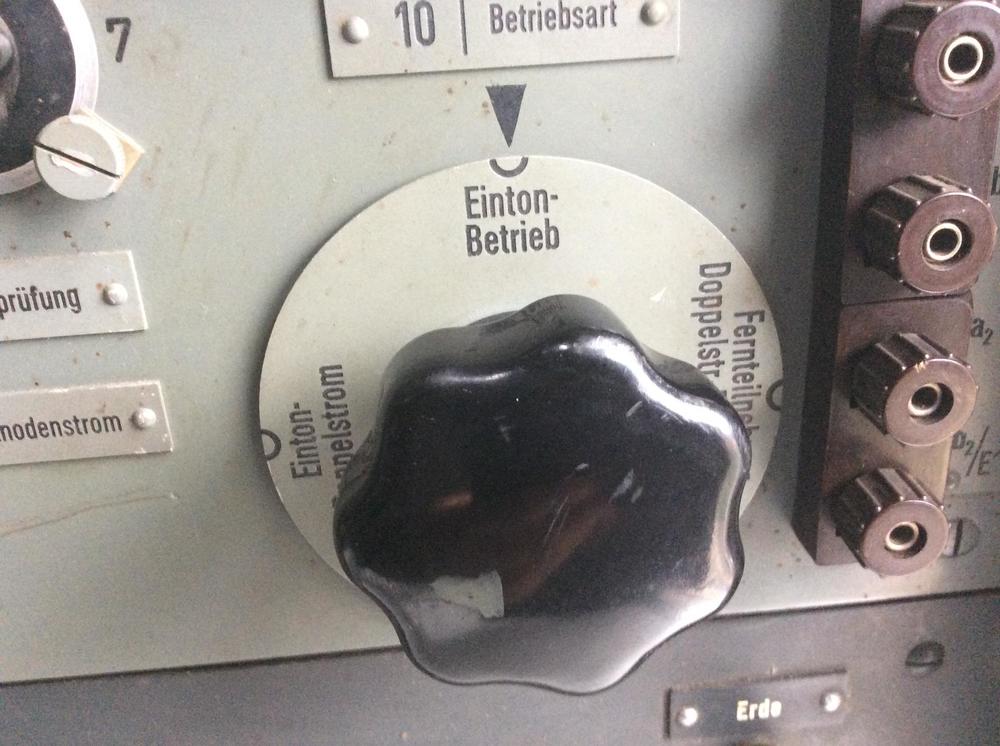

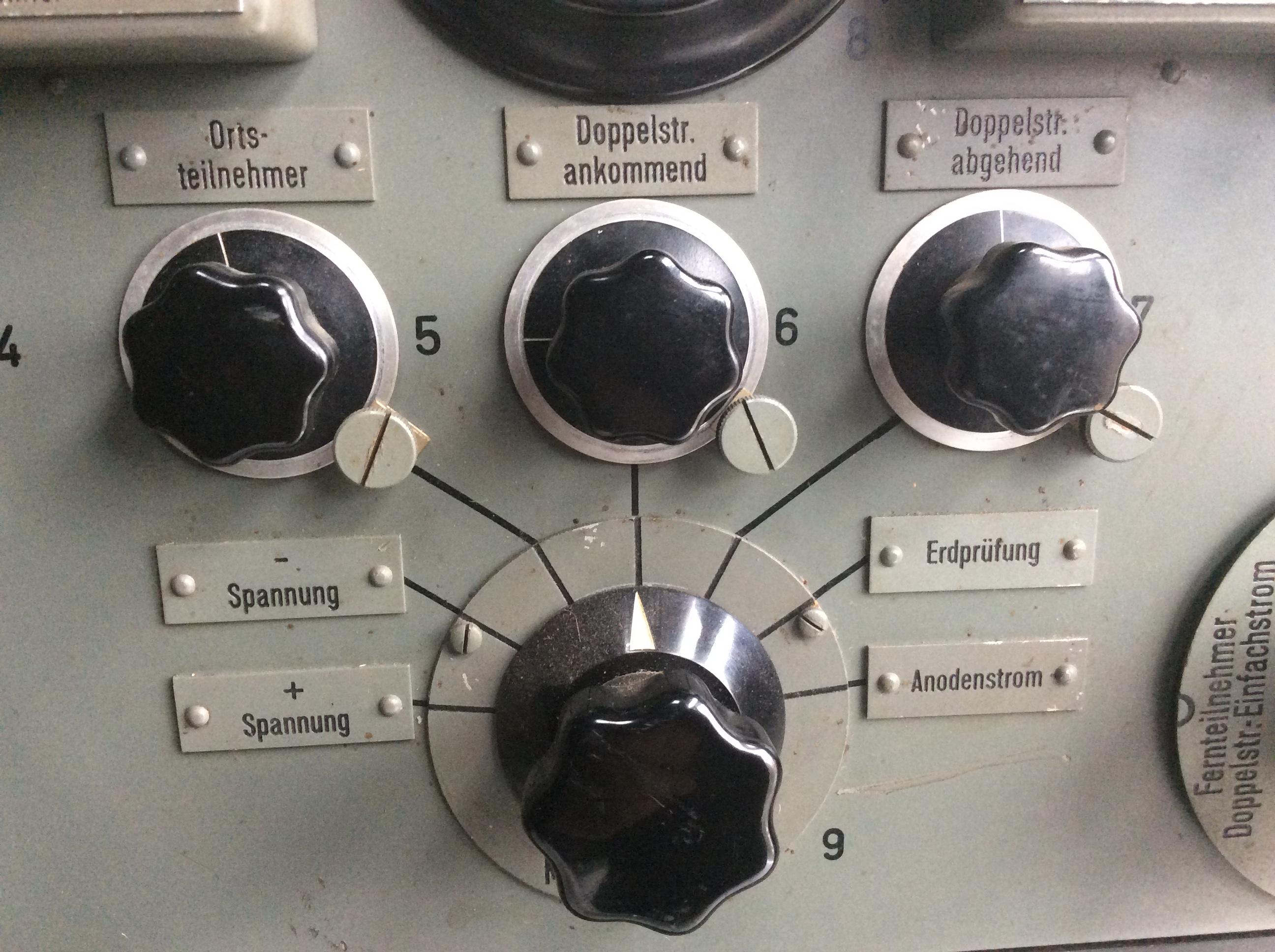

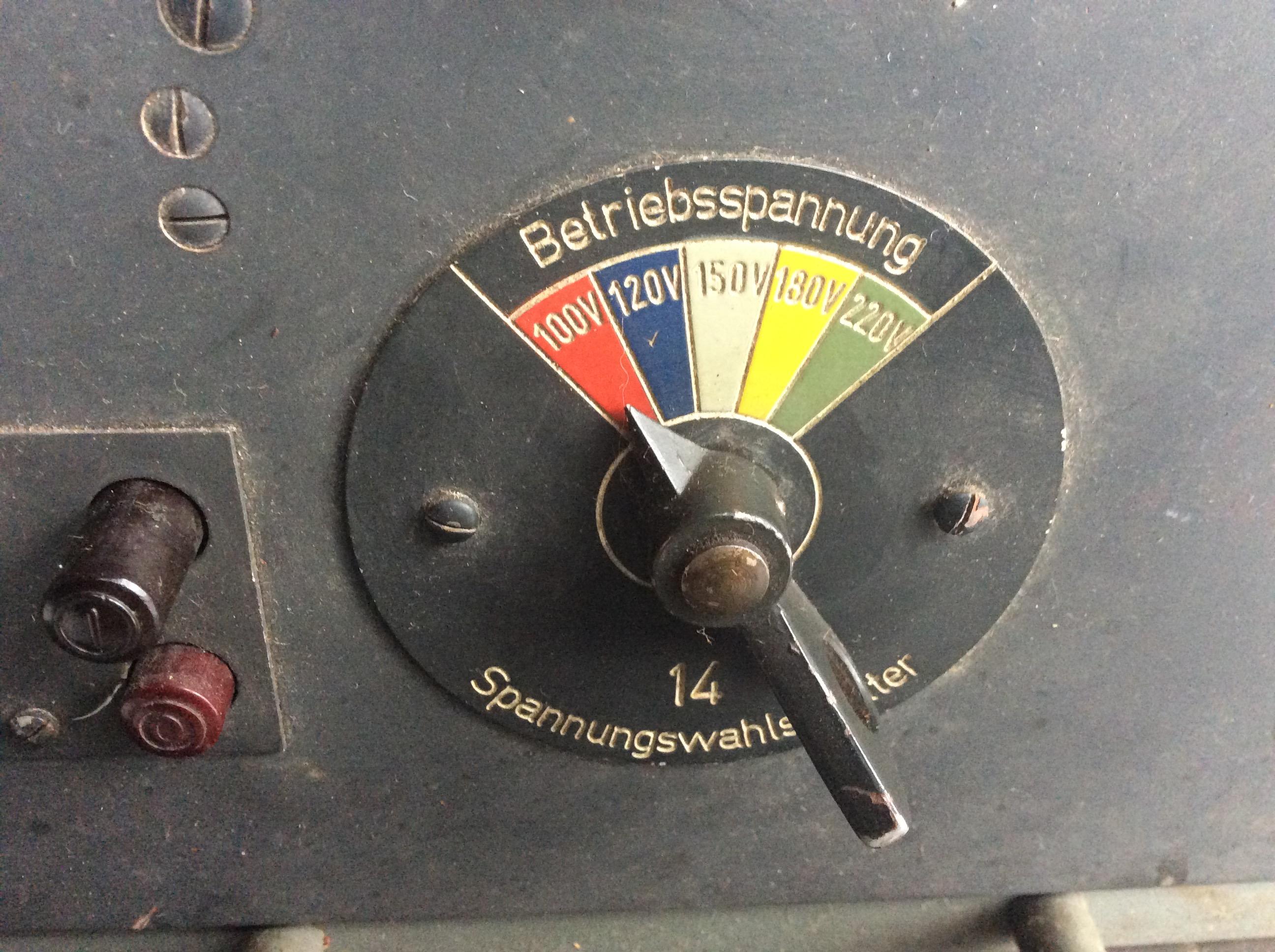

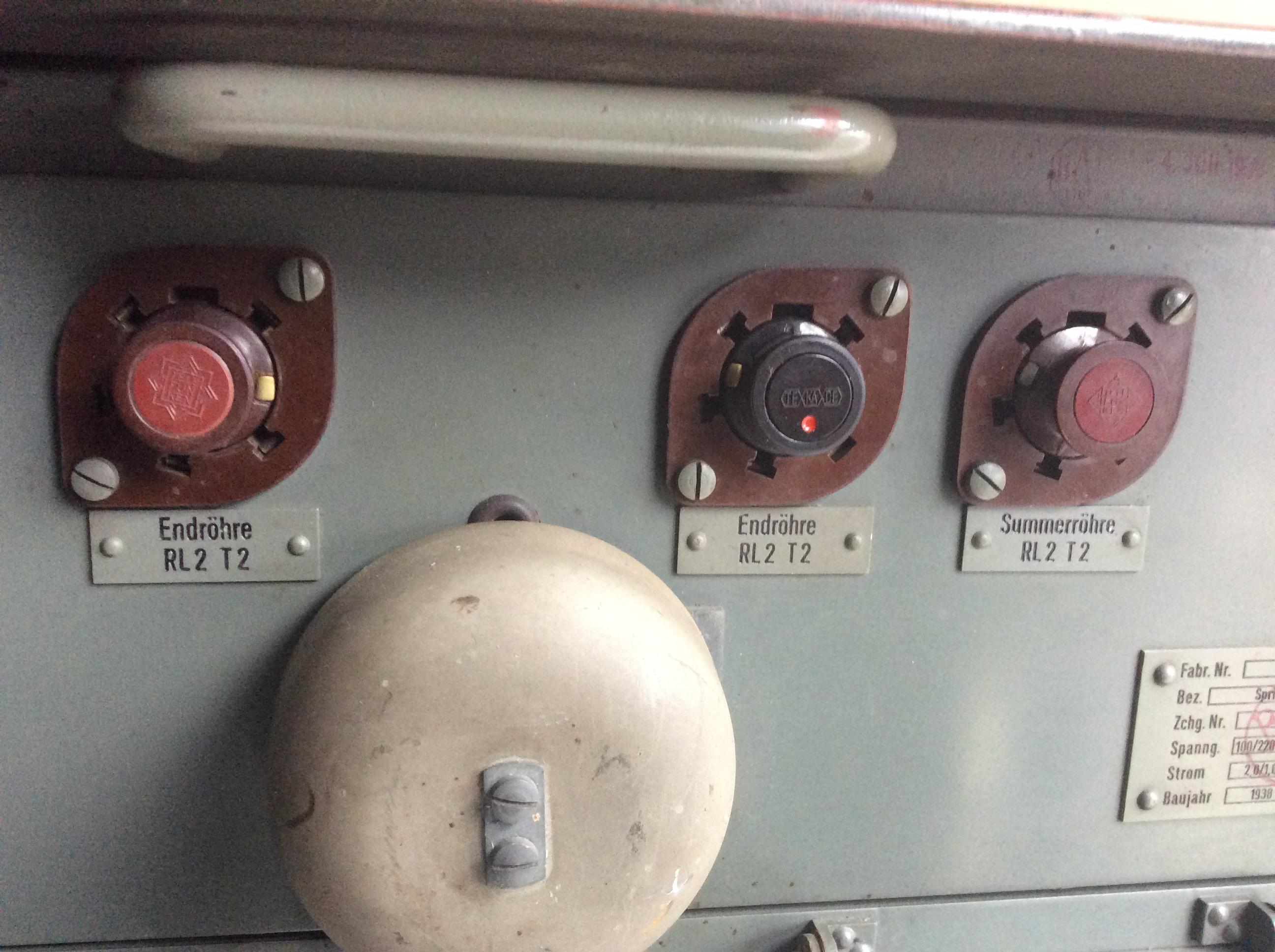

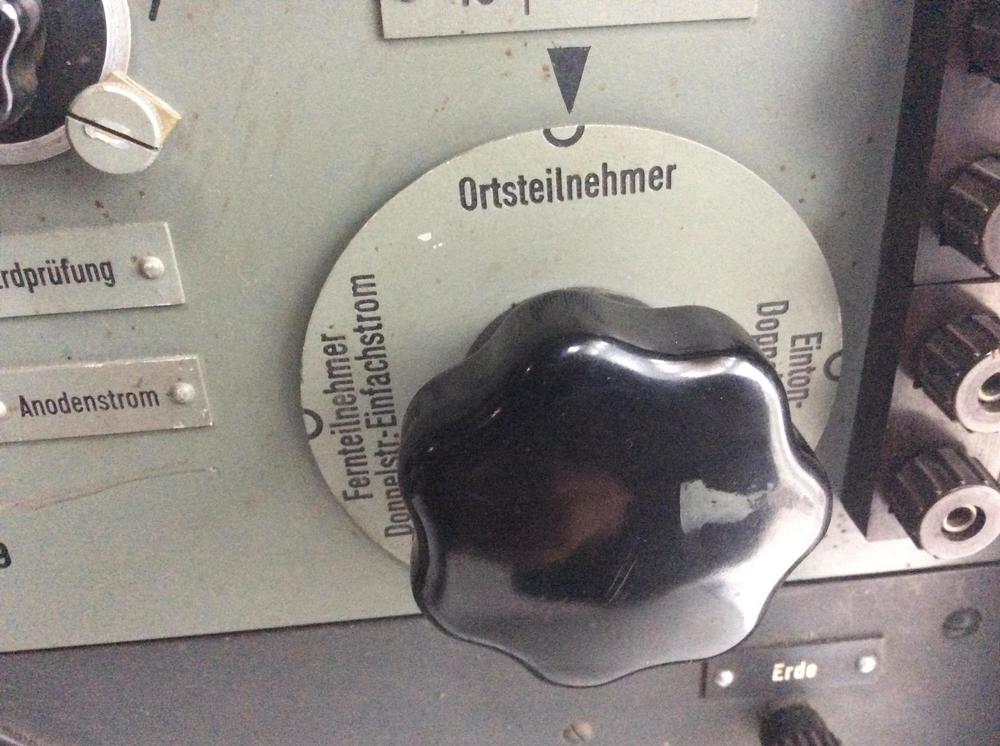

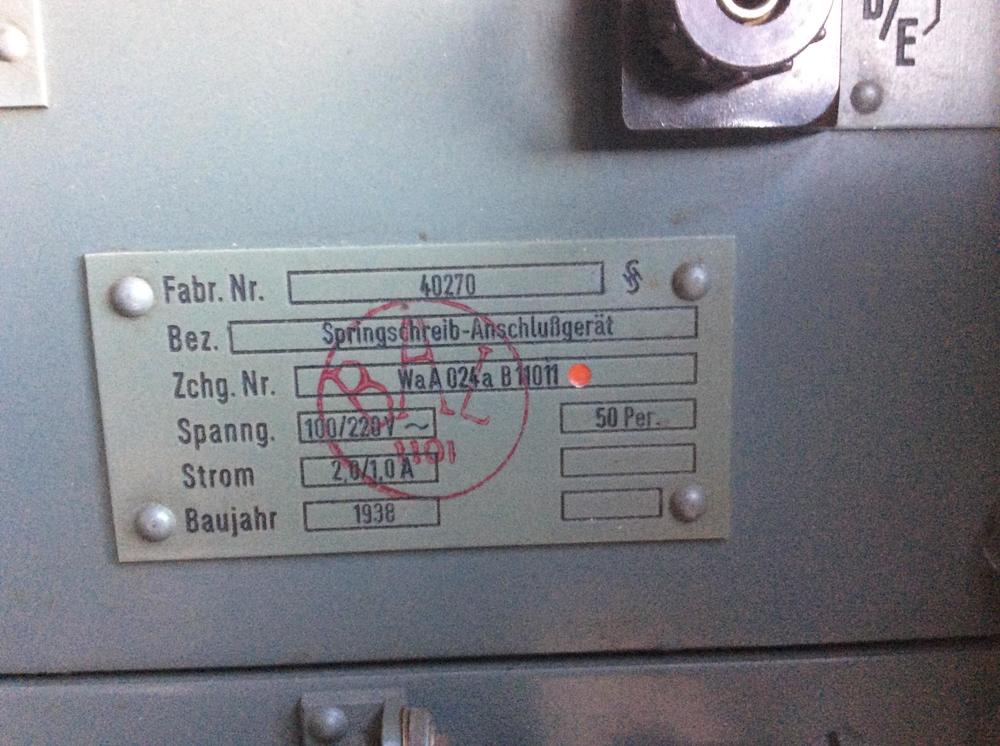

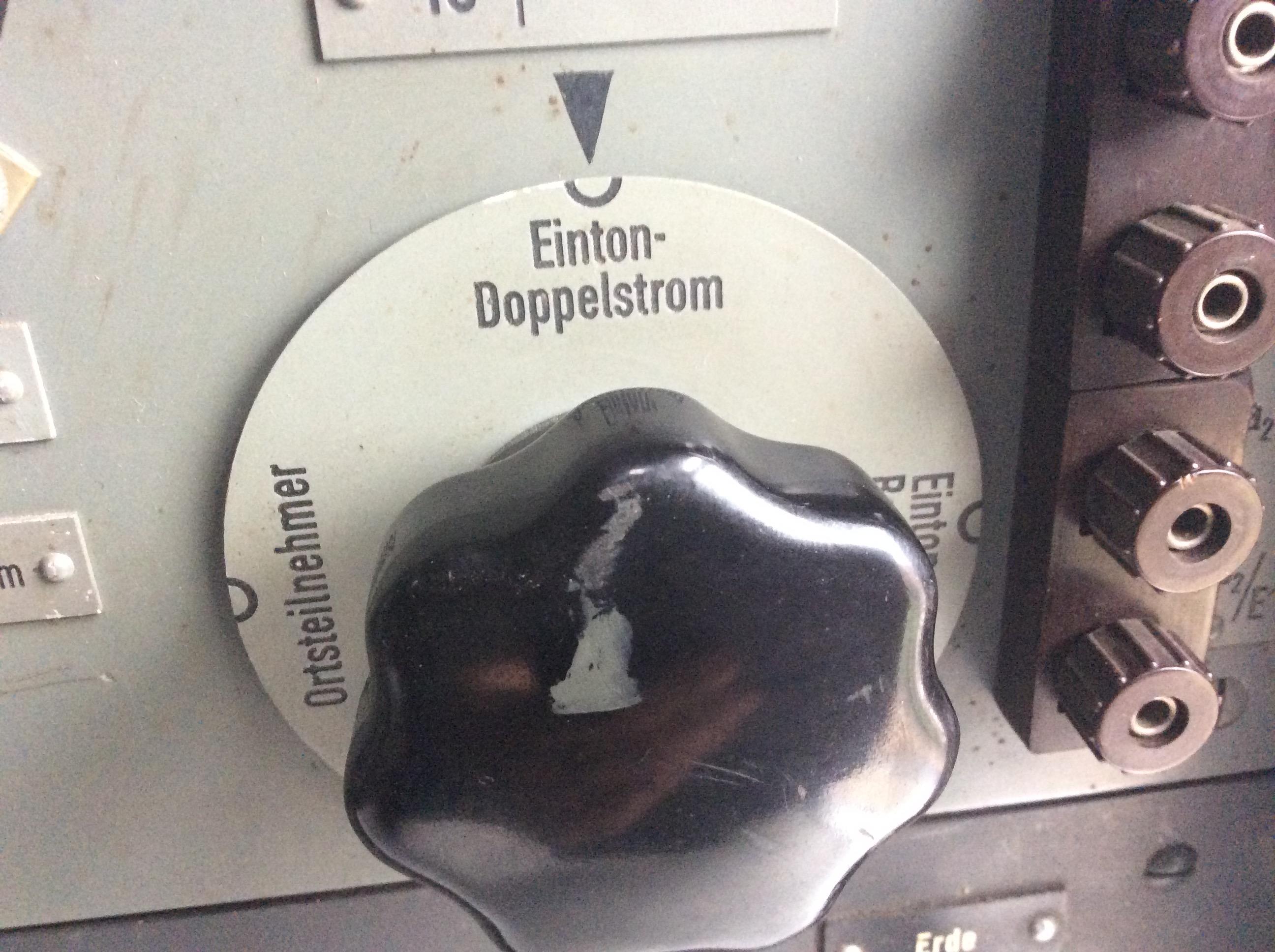

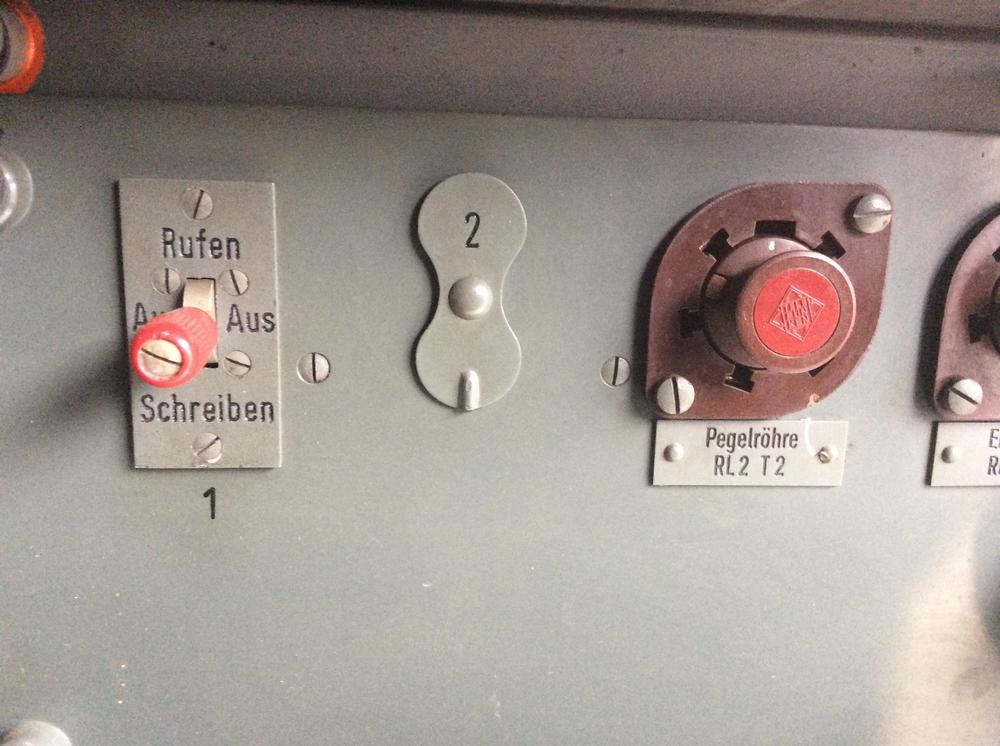

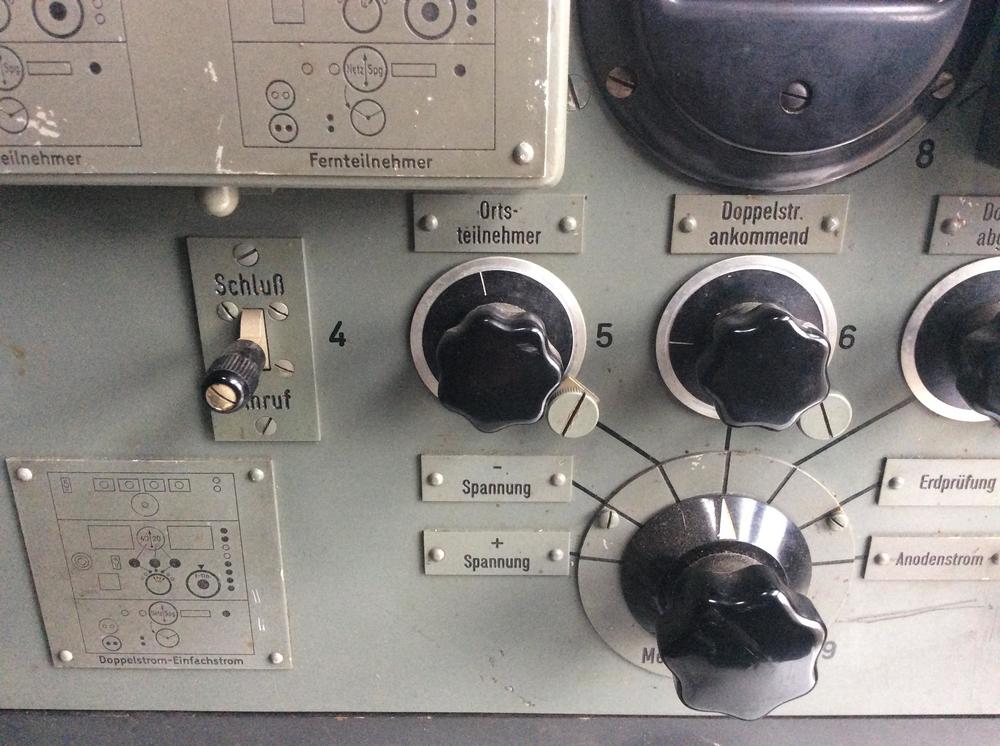

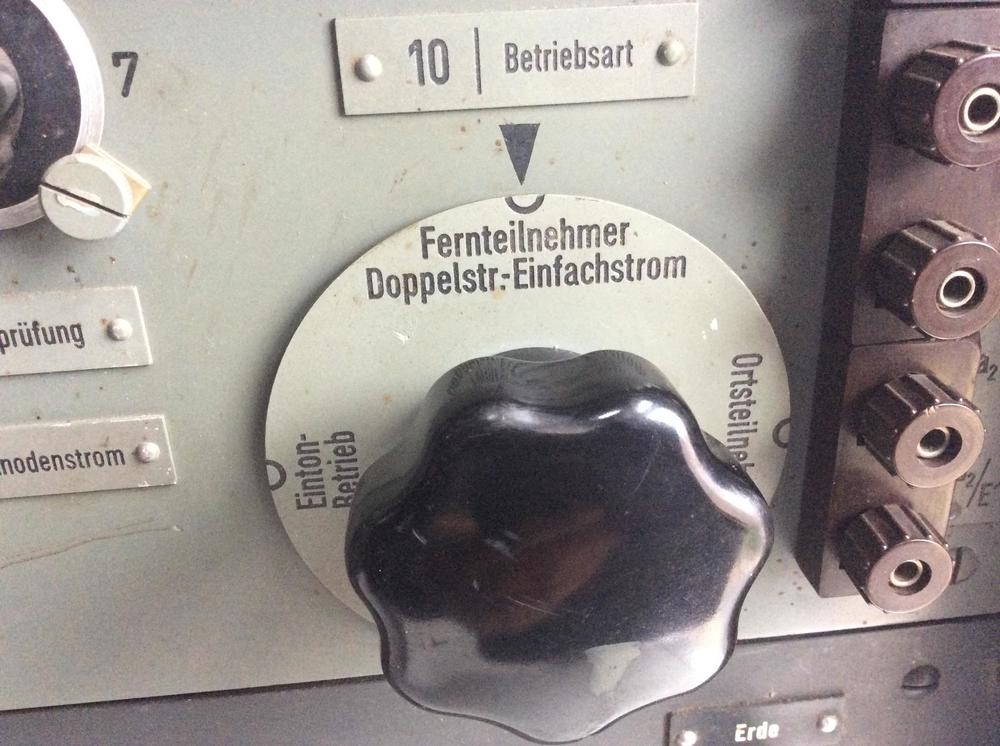

tornfuté Posted October 24, 2018 Posted October 24, 2018 Val here the pictures ,my set is made by Lorenz 1
tornfuté Posted October 24, 2018 Posted October 24, 2018 mistake my set is siemens and Kemig is lorenz
kriegsfunker Posted January 3, 2019 Posted January 3, 2019 Translated manual on my site. Courtesy of Funksammler 1
val Posted January 3, 2019 Author Posted January 3, 2019 22 minutes ago, kriegsfunker said: Translated manual on my site. Courtesy of Funksammler Thank you very much @kriegsfunker and @Funksammler!
