val Posted February 3, 2019 Posted February 3, 2019 Unfortunately batteries are the thing that don't survive over a long time very well - they contain either acid or alkaline - aggressive substances that destroy the battery housing. Exception are the batteries that are in plastic housing. So even nice images of the original batteries are sometimes very rare! Here is seen radio battery 4,8NC10 is converted into the portable lamp, seems like a war time field modification. However those images shows nicely the battery itself - 4 cells in series. Nickel-cadmium one cell is 1.2 volt, so four of them in series makes exactly 4.8 volt. The battery chemistry type, it voltage and capacity is encoded into battery type - 4,8NC10 means 4.8 volt, nickel-cadmium and 10 amp hour. http://wehrmacht-awards.com/FORUMS/showthread.php?t=882081
val Posted February 4, 2019 Author Posted February 4, 2019 Interesting battery i haven't seen before - 4,8NC20 https://www.quartermaster.nl/index.php/batterie-fur-funkgerate-sammler-nc-4-8-20.html

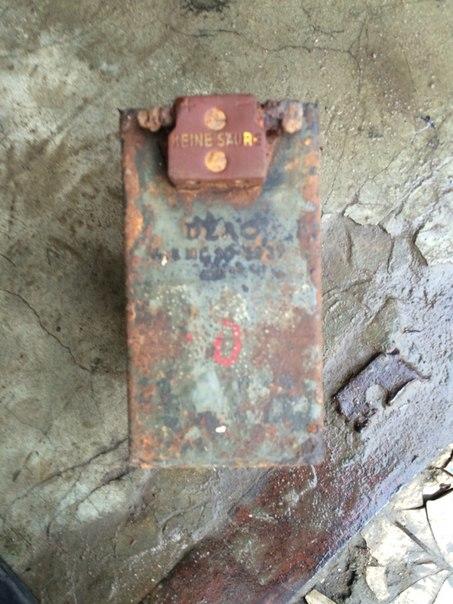

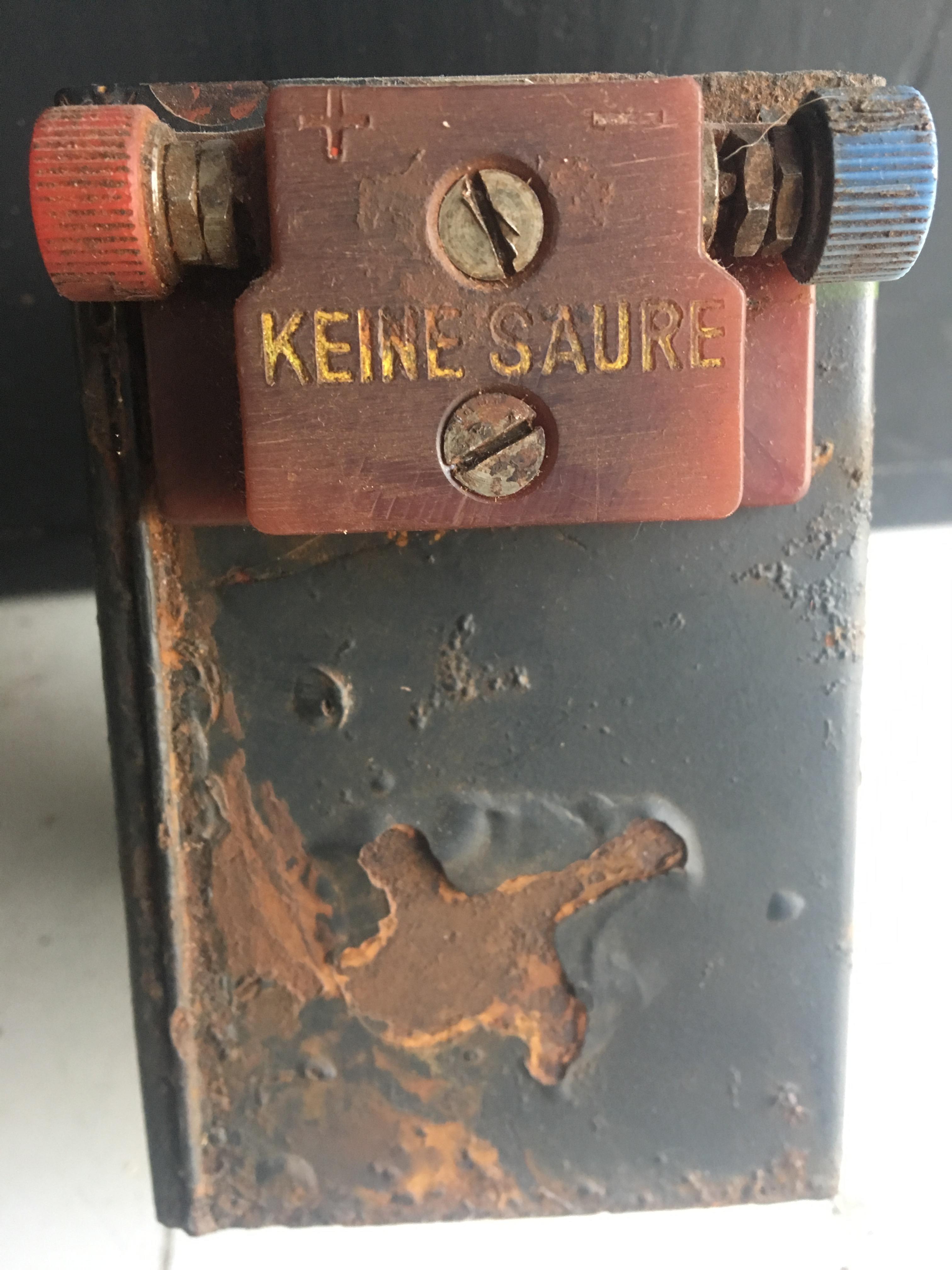

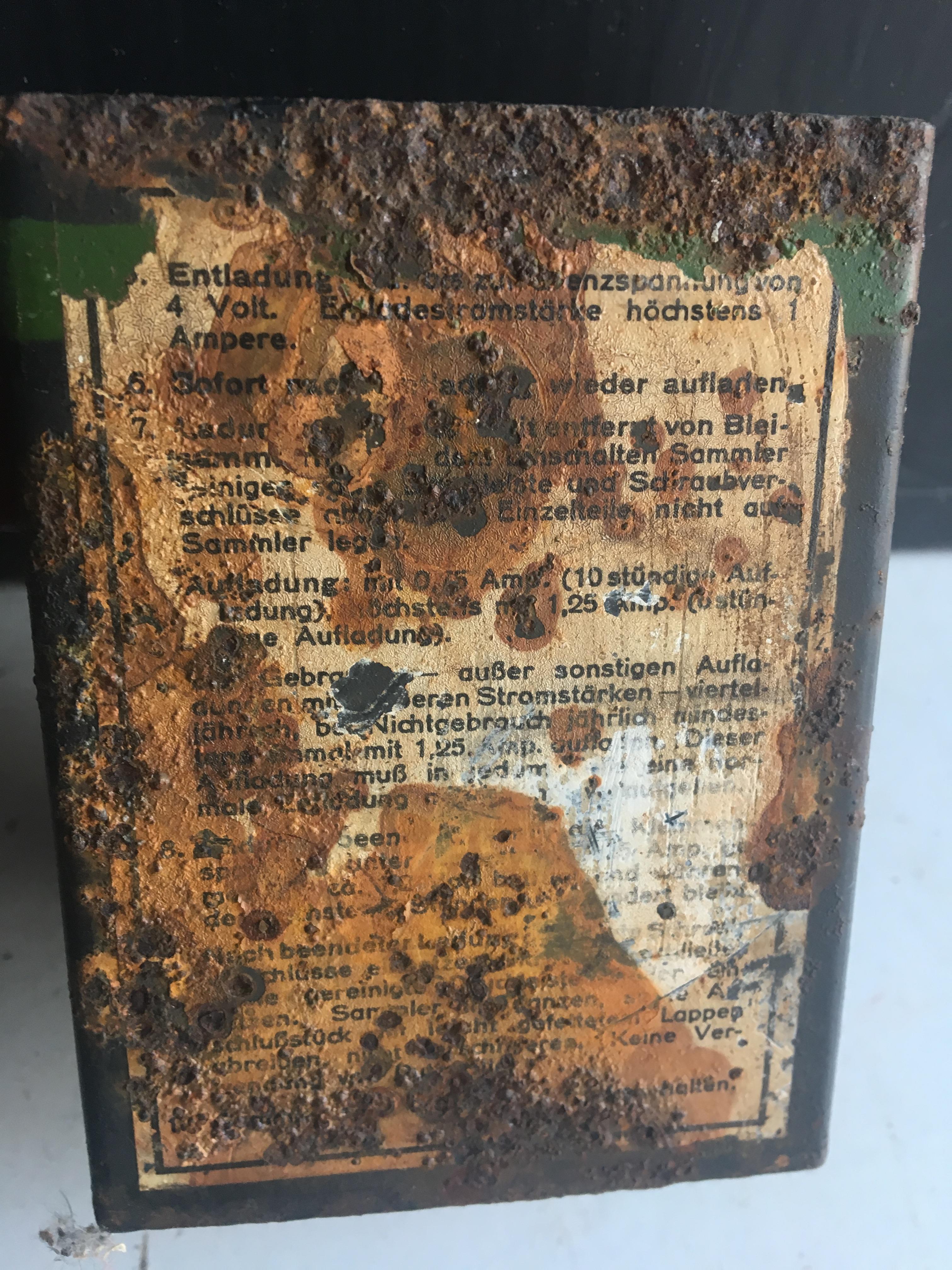

val Posted February 4, 2019 Author Posted February 4, 2019 4,8NC10 This one has more luck - some text has survived. 1

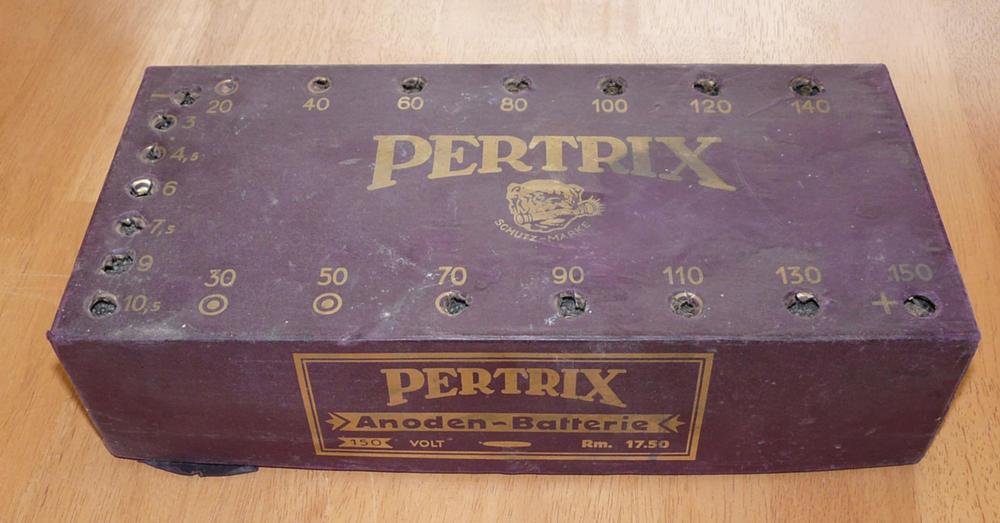

kriegsfunker Posted February 4, 2019 Posted February 4, 2019 A very rare original 150 Volt anode battery. This was used for earlier 1930s devices like the P57N. In excellent condition. 1 1
Funksammler Posted February 4, 2019 Posted February 4, 2019 8 hours ago, val said: Interesting battery i haven't seen before - 4,8NC20 https://www.quartermaster.nl/index.php/batterie-fur-funkgerate-sammler-nc-4-8-20.html The 4.8 NC 20 was part of the "Zeltbeleuchtungsgerät", so it was used for lighting a small tent, not for radio purposes. regards, Funksammler 1

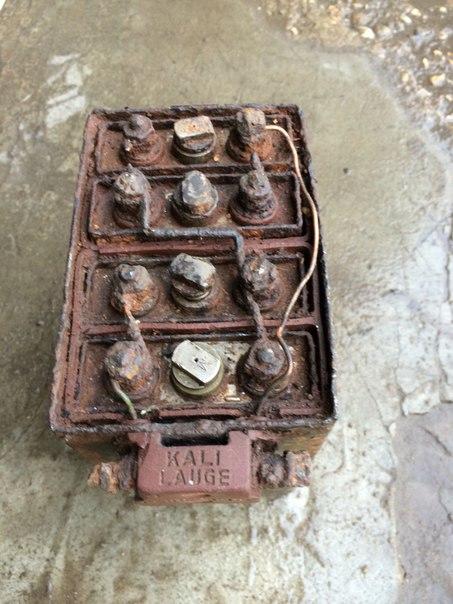

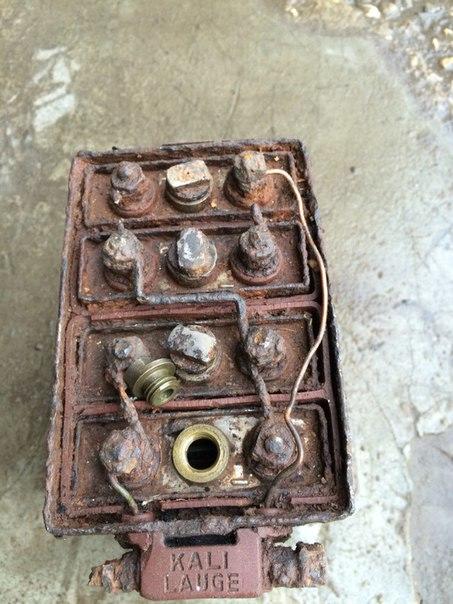

val Posted February 4, 2019 Author Posted February 4, 2019 Very nice 4,8NC10 been on sale at KPEMIG. https://www.kpemig.de/C-48-NC-10-NiCa-Akku-fuer-die-Luftwaffe-datiert-1939-Originallack-selten BTW, i have seen 4,8NC10 rewired in such a way that two cells groups are in parallel and then those parallel group are in series - makes 2,4 volt, but 20 amp*h. Any guess why they rewired them? For Bodenständig FeldFu's? Previous bunker dug out battery shows just such a configuration, as this radiomuseum.org image:
val Posted February 5, 2019 Author Posted February 5, 2019 Yuri, compare this to your's https://www.kpemig.de/Anoden-Batterie-Wehrmacht-gehoert-unter-anderem-in-den-Zubehoertornister-zum-TornEb
val Posted February 5, 2019 Author Posted February 5, 2019 Another Anoden batterie. https://www.kpemig.de/Maskenbrille-Wehrmacht-Neuwertig-Originalverpackt_362
kriegsfunker Posted February 5, 2019 Posted February 5, 2019 42 minutes ago, val said: Yuri, compare this to your's https://www.kpemig.de/Anoden-Batterie-Wehrmacht-gehoert-unter-anderem-in-den-Zubehoertornister-zum-TornEb It's the more common 90 volt type.

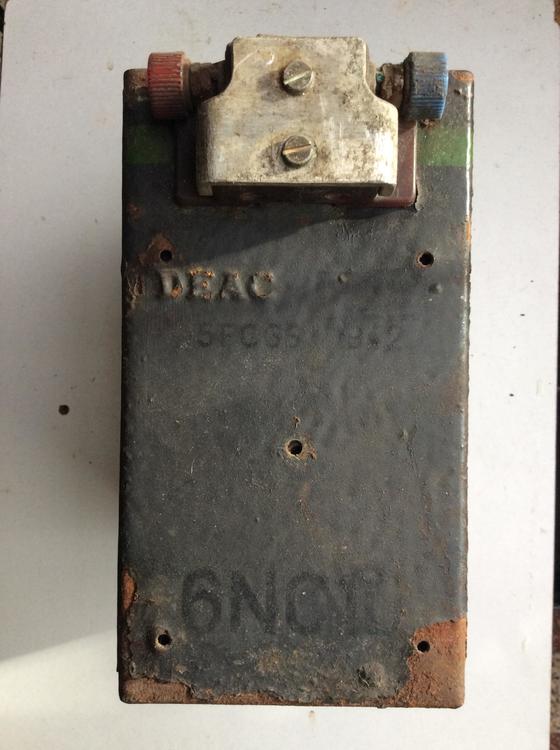

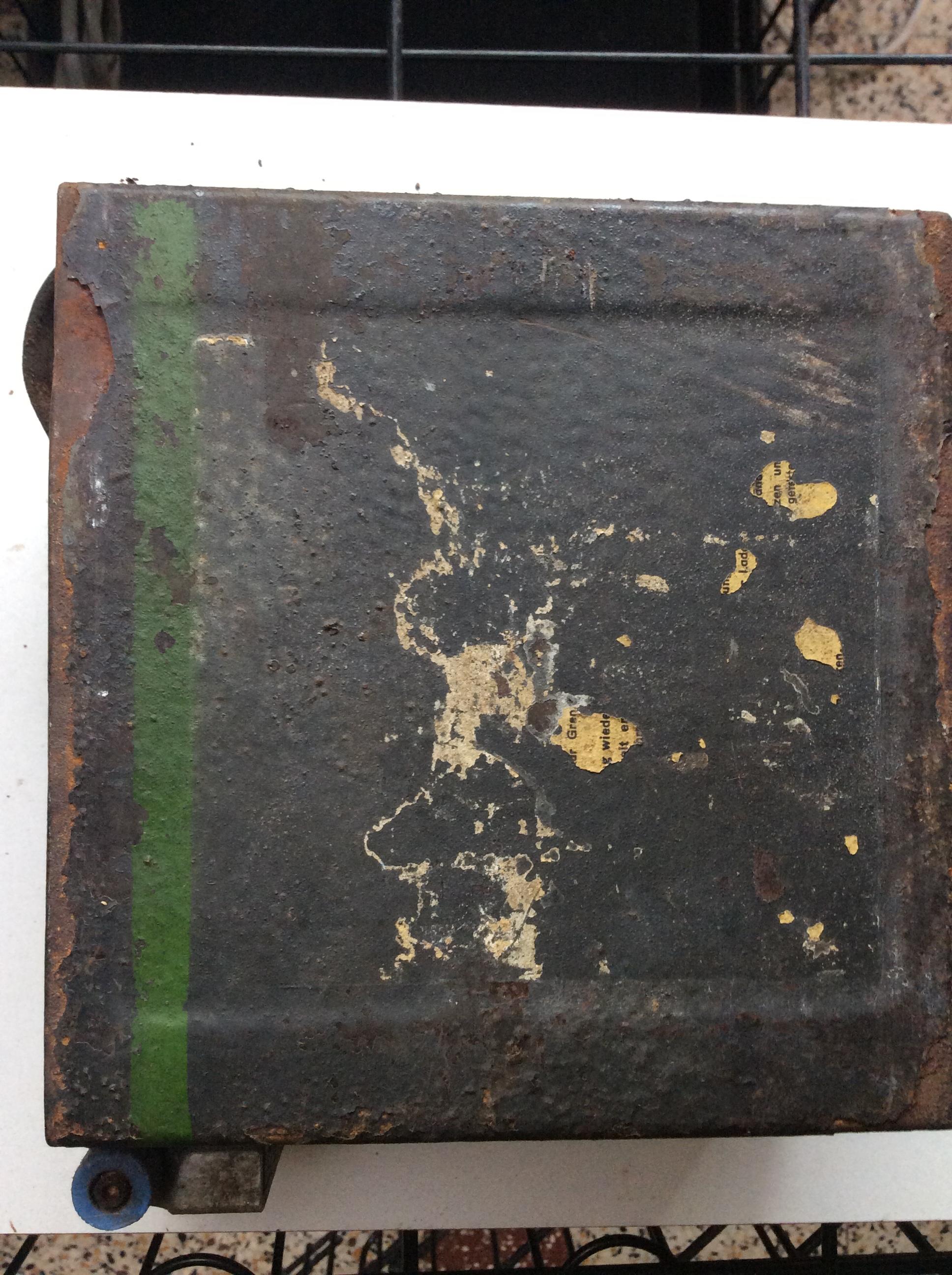

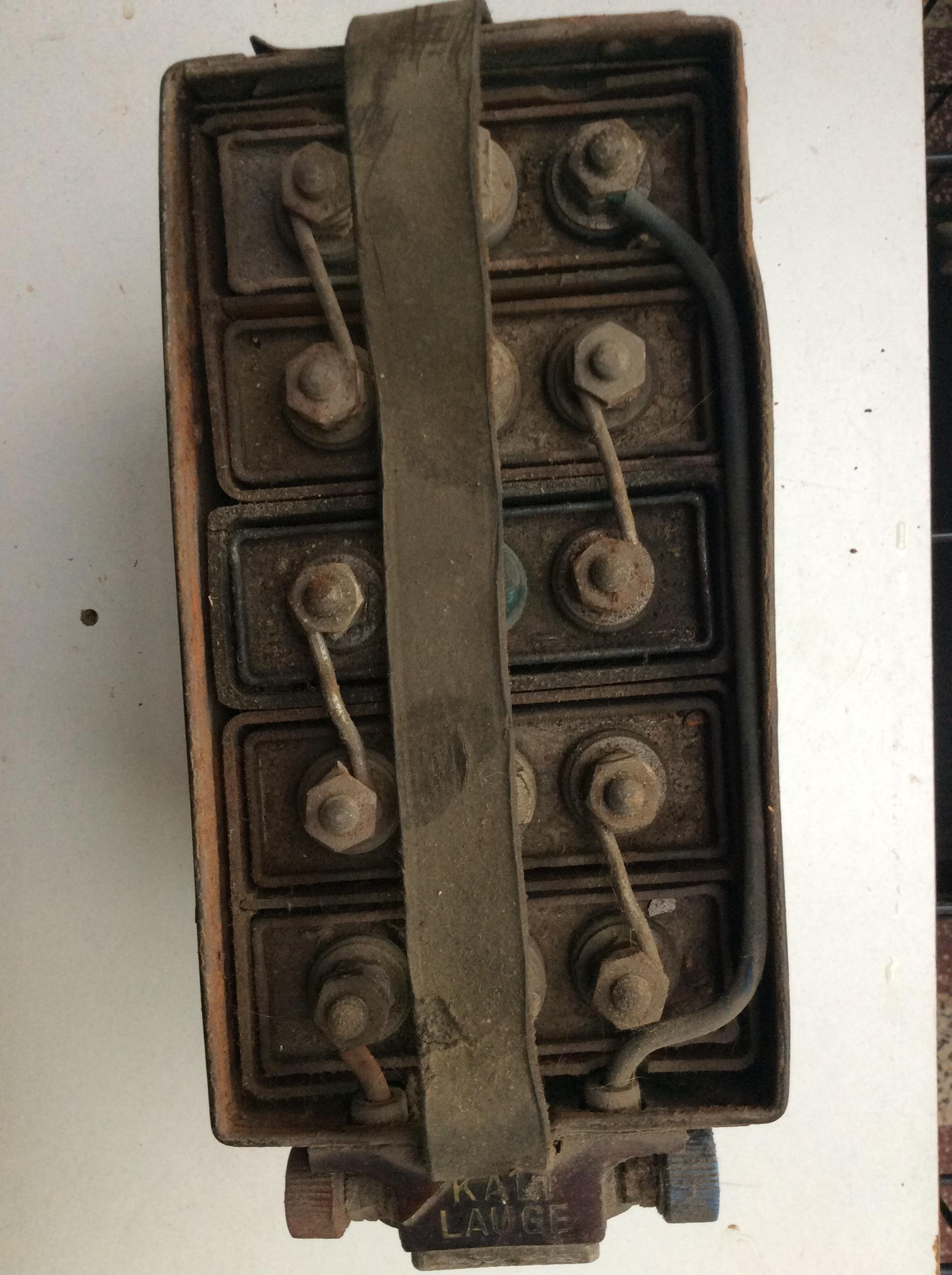

tornfuté Posted February 7, 2019 Posted February 7, 2019 Here a 6NC10 5x 1,2 v ni cd cell used in marine accessories box for old 15 ws station 272 BS later named SE528 S 1/37 1 1
val Posted February 7, 2019 Author Posted February 7, 2019 Pierre, interesting battery, thank you! Never seen a 5 element one before.

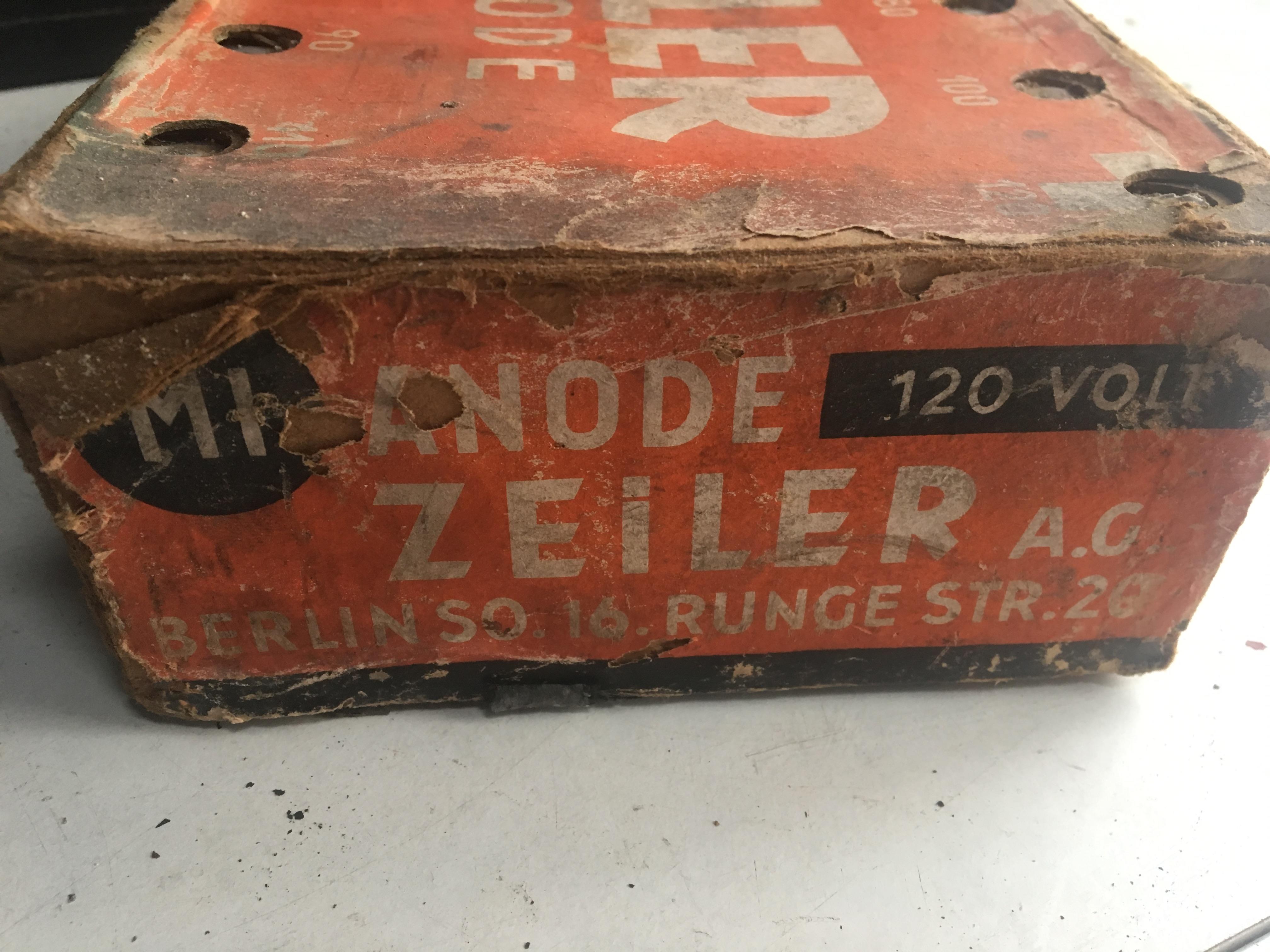

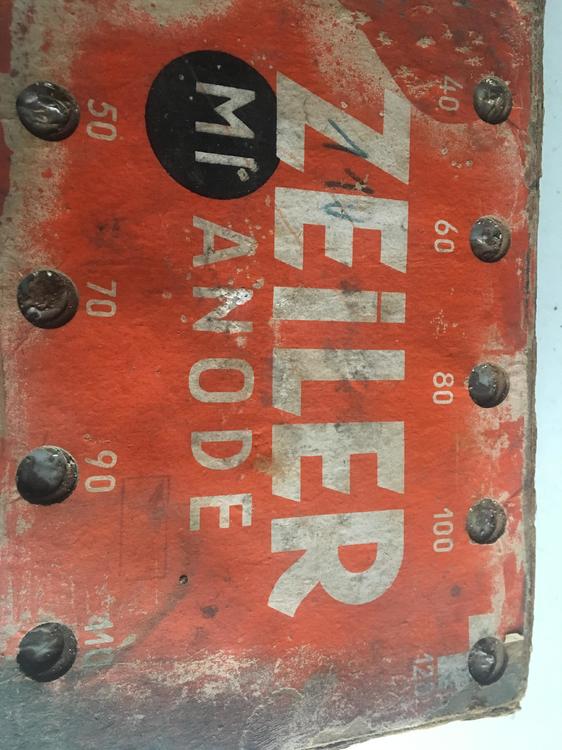

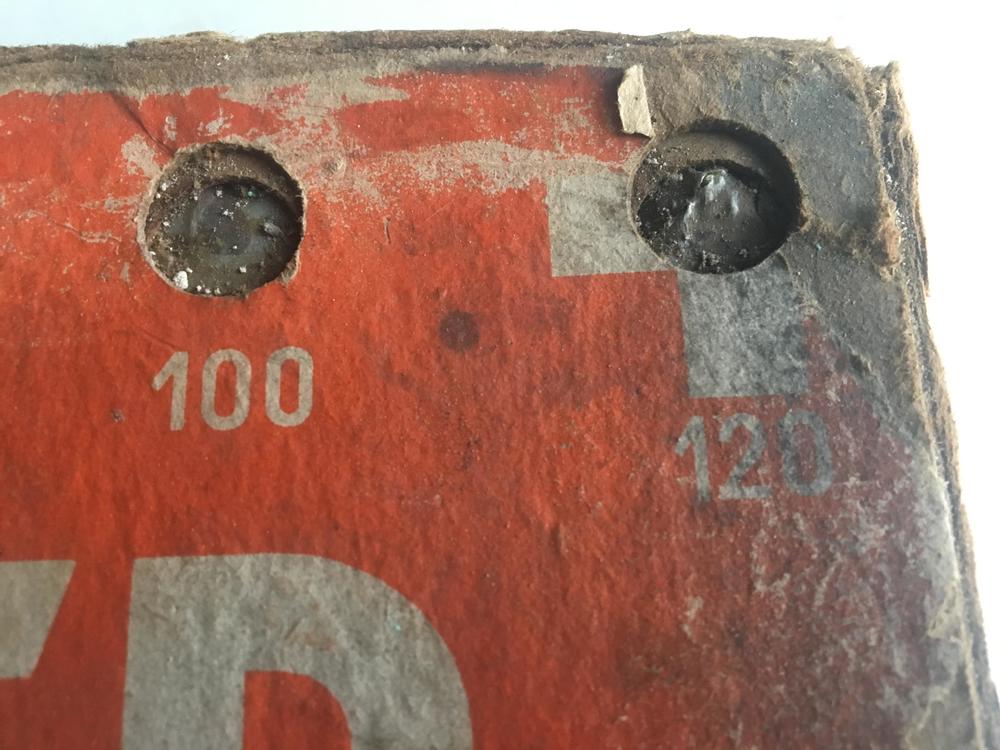

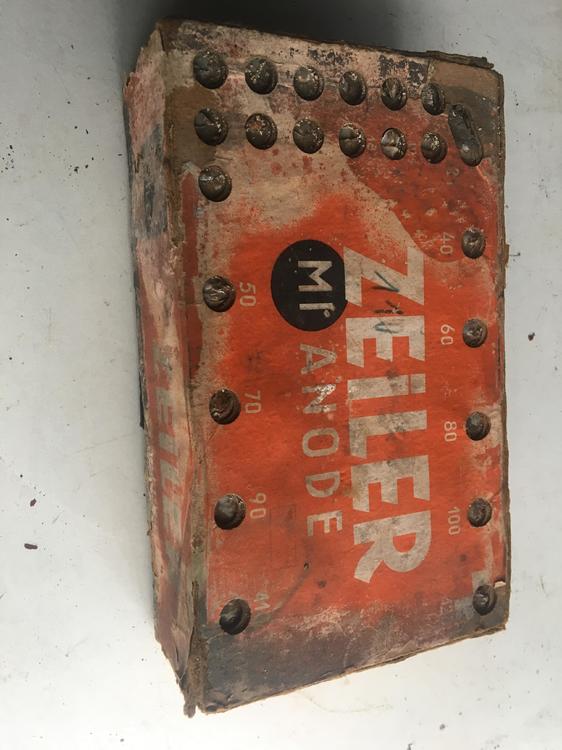

tornfuté Posted February 10, 2019 Posted February 10, 2019 other original high voltage battery it's a 120 volts zeiler battery that was formely in a siemens luftwaffe wooden box k32gbw 1 1
kriegsfunker Posted February 10, 2019 Posted February 10, 2019 Nice! I like these original ones. It is easy to make good reproductions.
kriegsfunker Posted February 10, 2019 Posted February 10, 2019 What was the average operating time for these batteries?

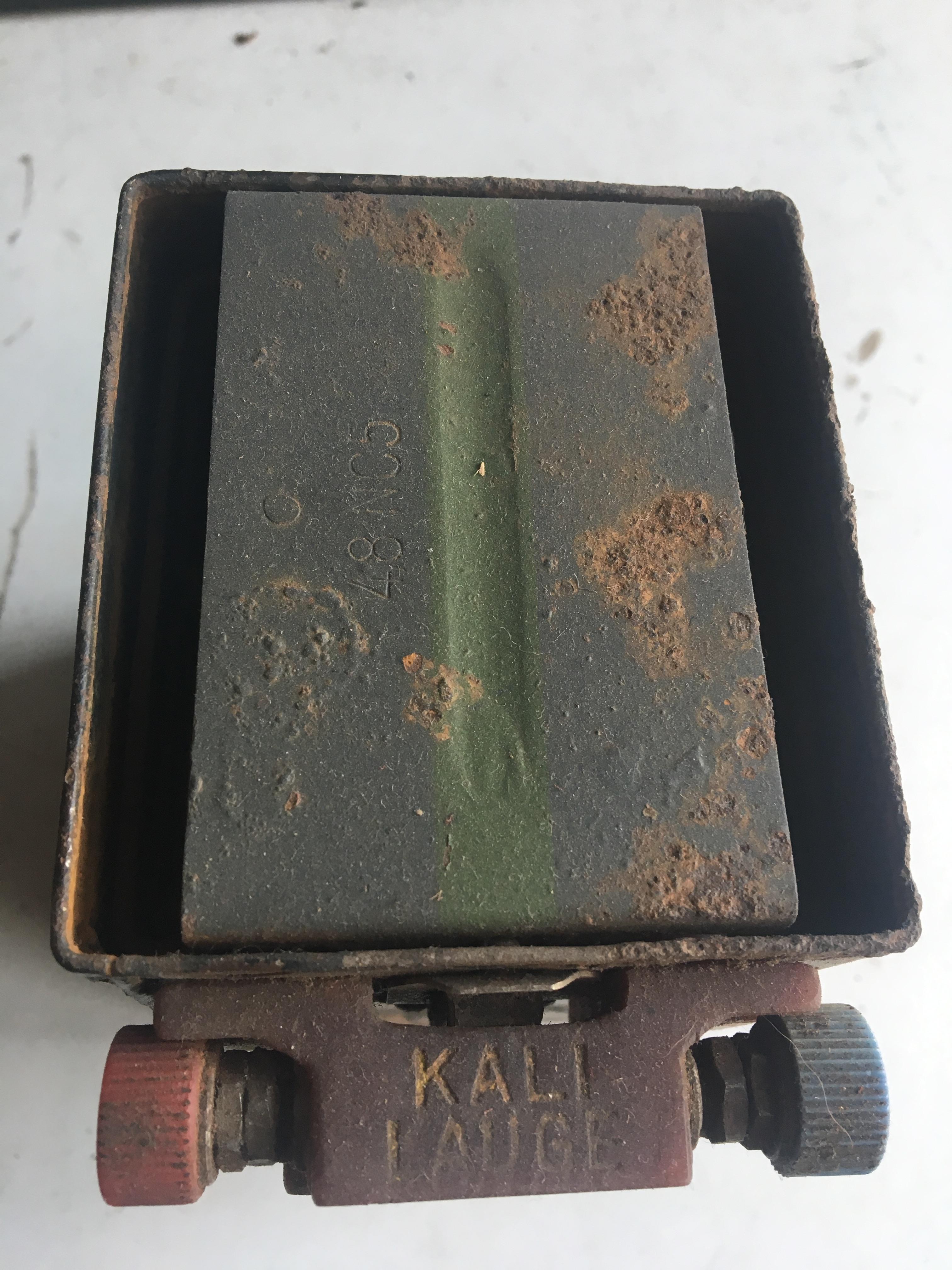

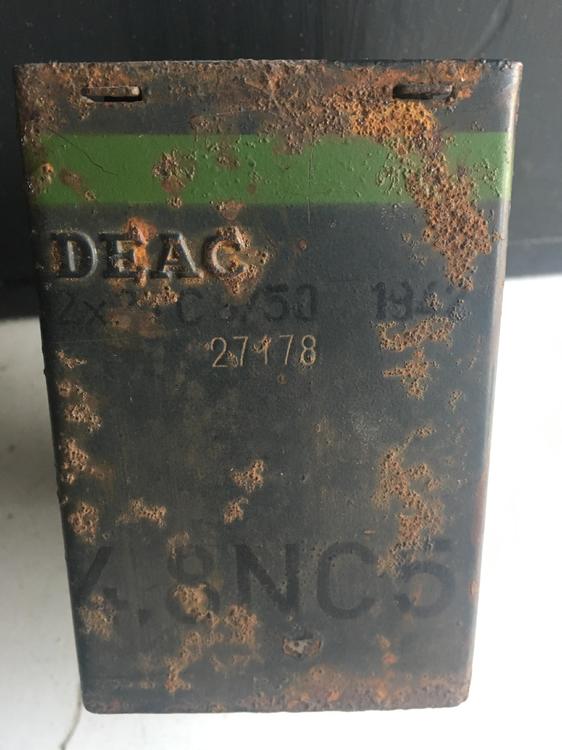

tornfuté Posted February 11, 2019 Posted February 11, 2019 4,8 NC 5 NI -Cd battery it's used with old lisprechgeraet 80, some optical device i guess and also it can be used with enigma machine as outside batterie 1 1

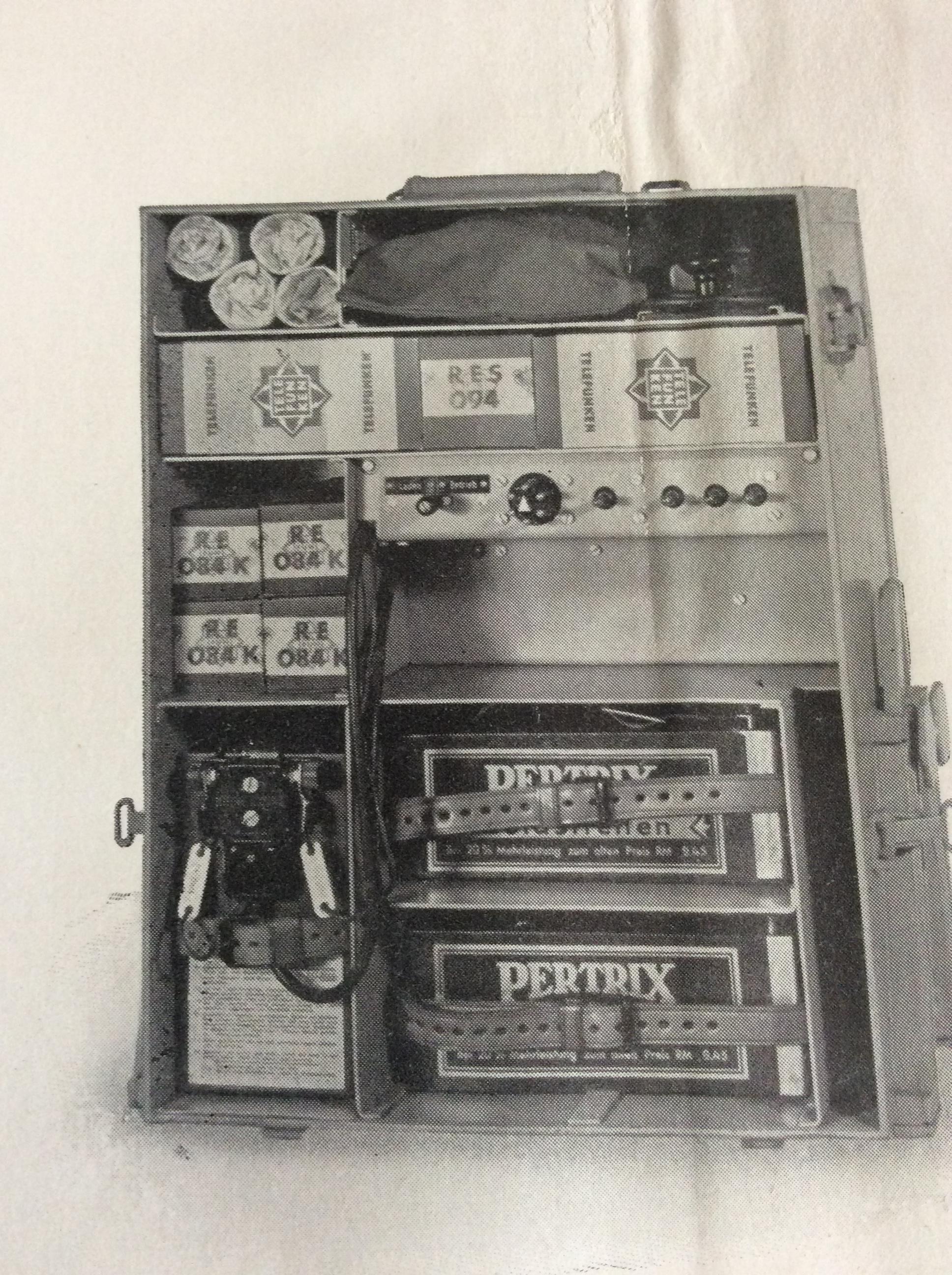

val Posted September 29, 2019 Author Posted September 29, 2019 Interesting accessory box. https://archiwum.allegro.pl/oferta/skrzynka-1941-r-wehrmacht-nickelsammler-zubehor-i7625918335.html

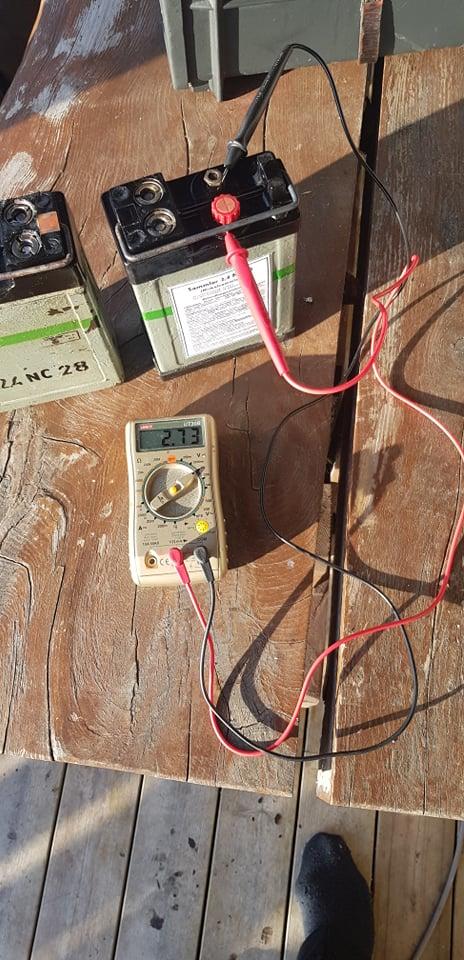

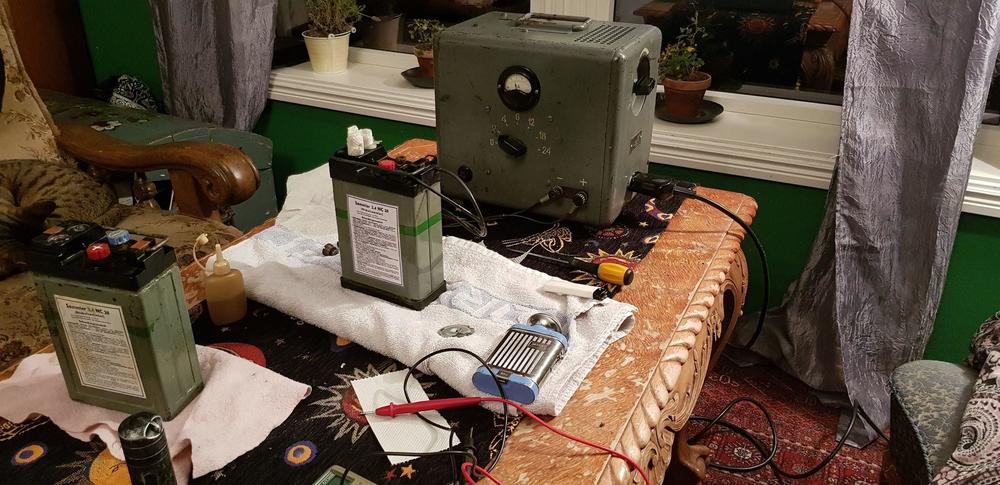

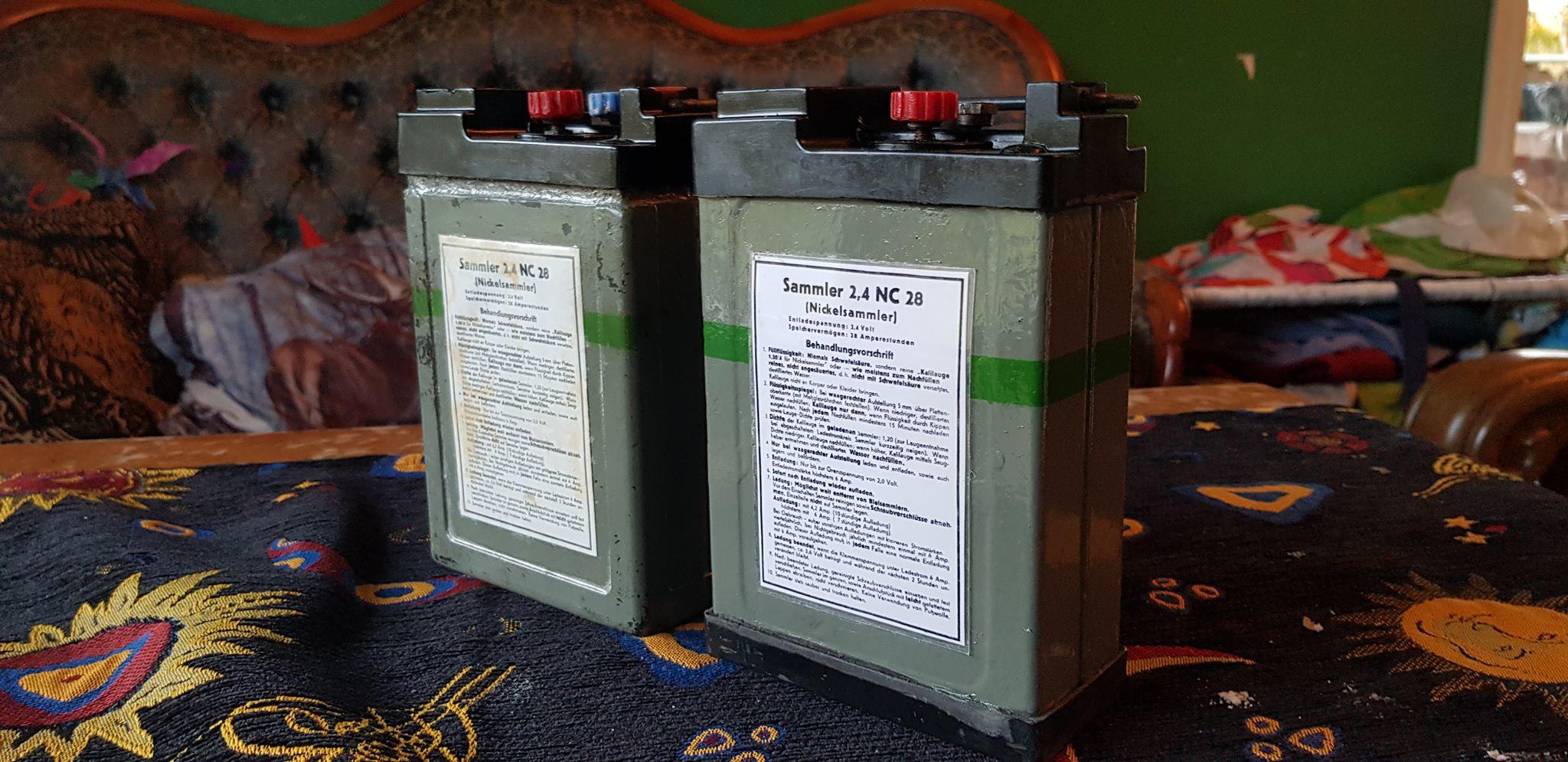

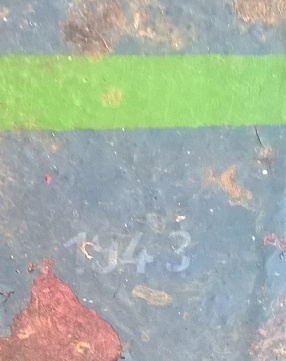

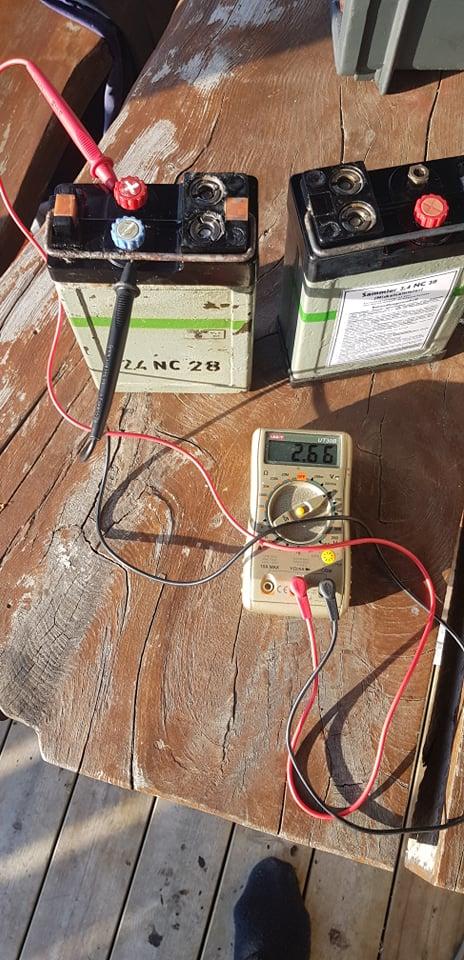

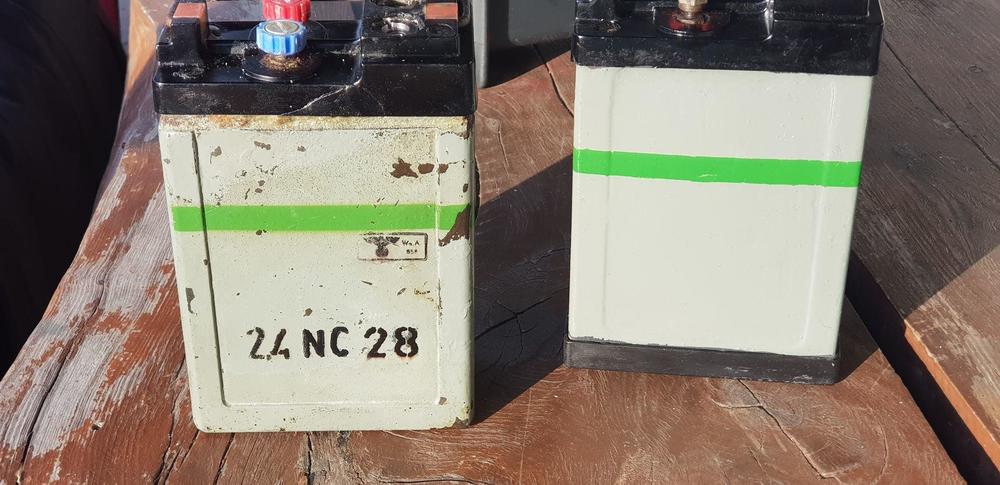

Björn Posted September 30, 2019 Posted September 30, 2019 Here are a couple of pictures of the 2,4NC28 Battery: And a couple of pictures of the same battery, together with a restored/repainted 2,4NC28 The batteries are still in working condition: 1 1

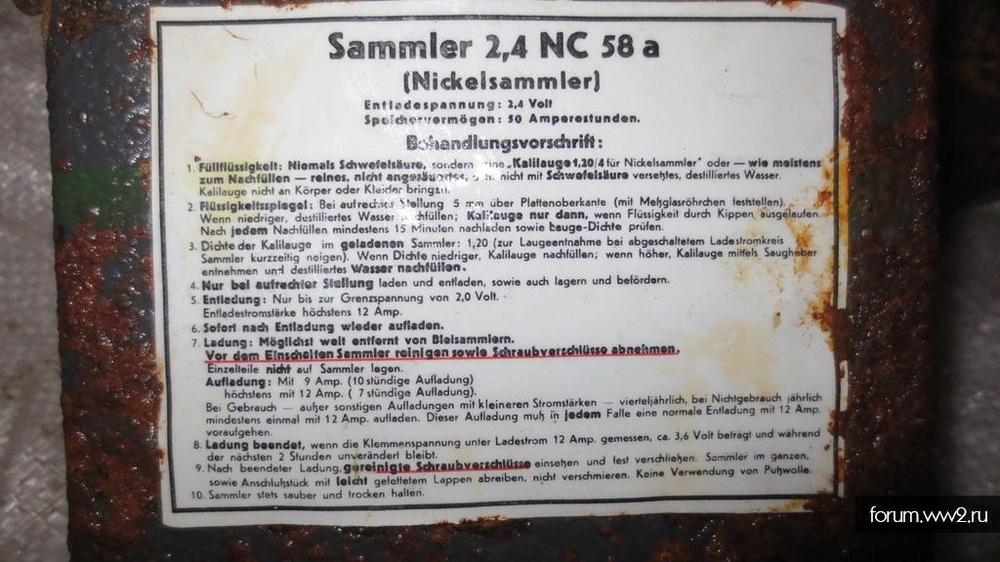

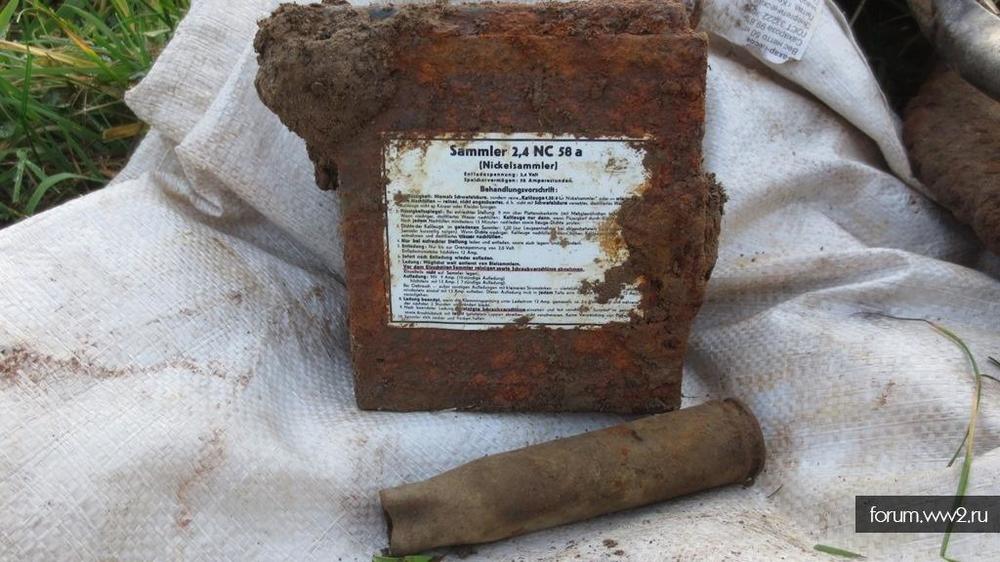

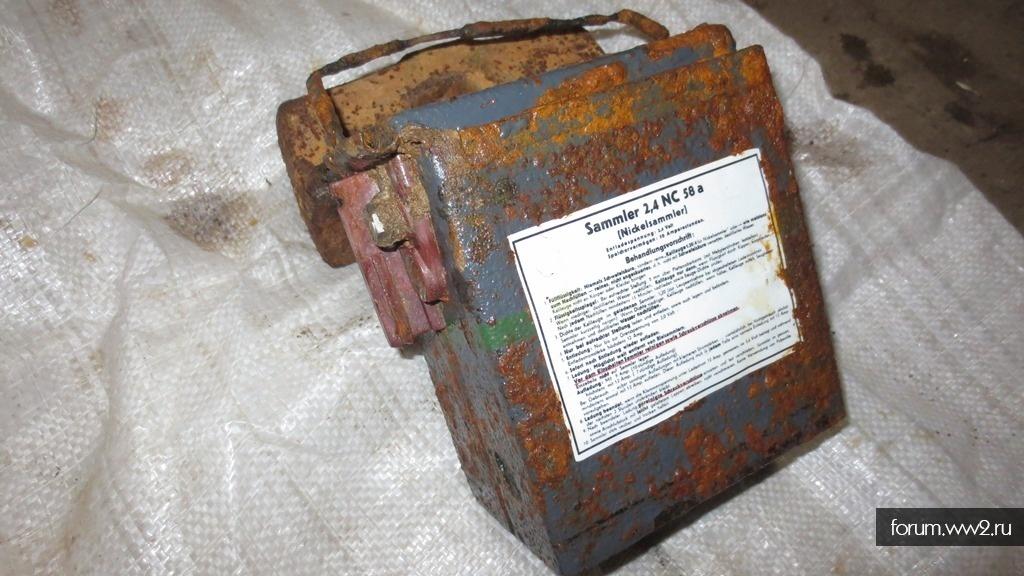

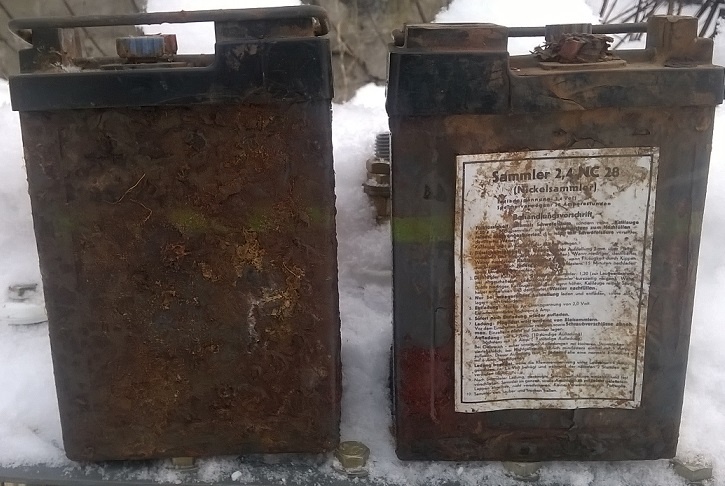

Björn Posted October 1, 2019 Posted October 1, 2019 And here I found pictures of the 2,4NC58 battery. I have read about this battery, but until this evening I have never seen any pictures of it before. https://forum.ww2.ru/index.php?showtopic=46001&page=462 And I copied the pictures there, for future reference: 1 1

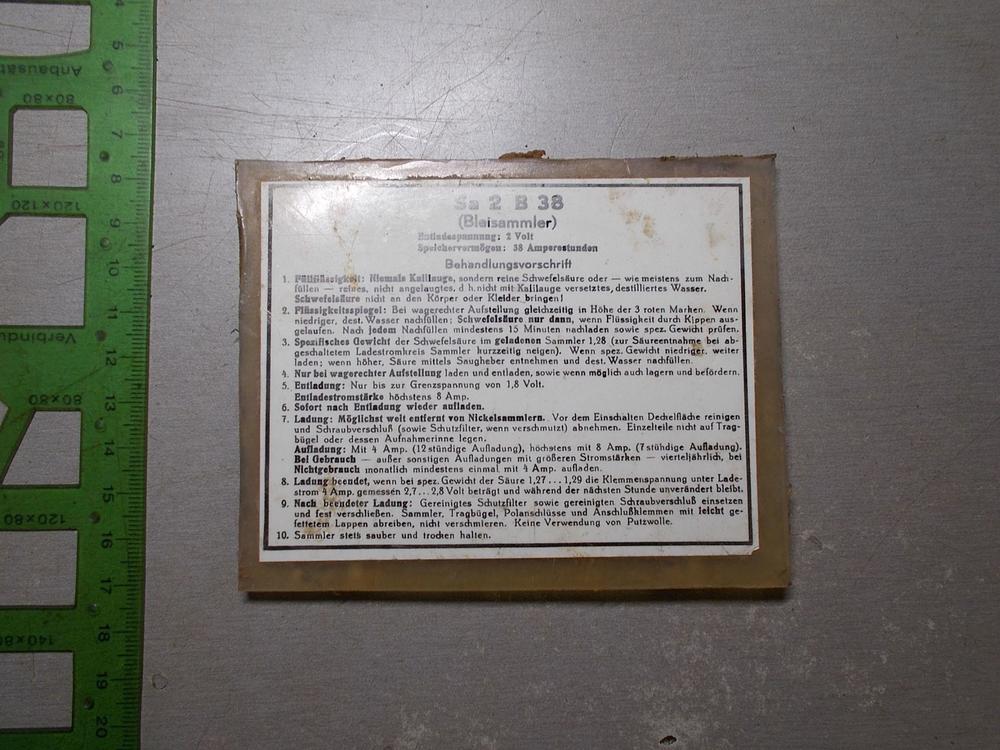

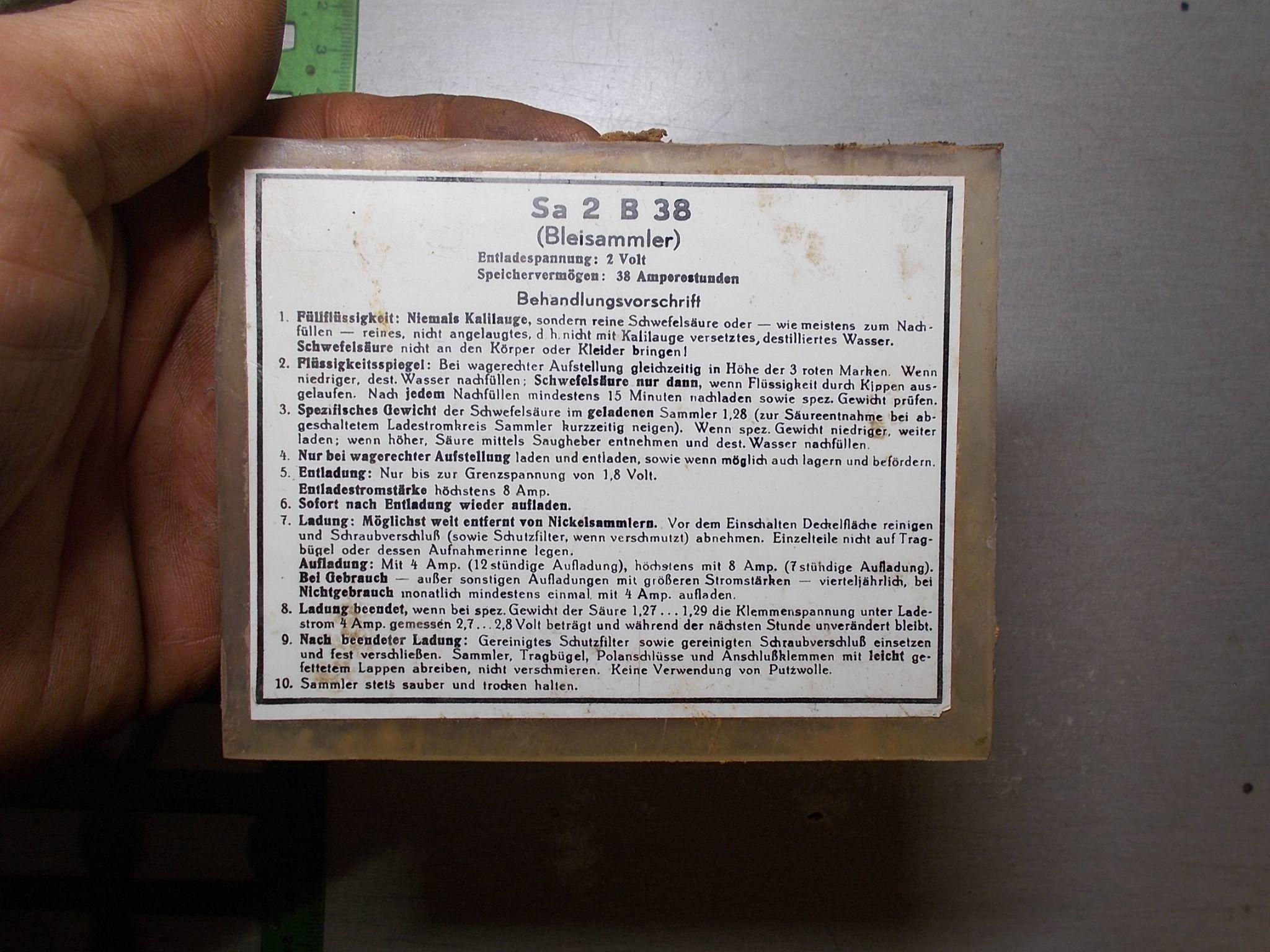

val Posted October 3, 2019 Author Posted October 3, 2019 Variant of 2 B 38 label, Sa instead of Sammler 1
val Posted July 26, 2022 Author Posted July 26, 2022 Some batteries. https://der-fernmelder.de/funktechnik/nickelsammler/ 1

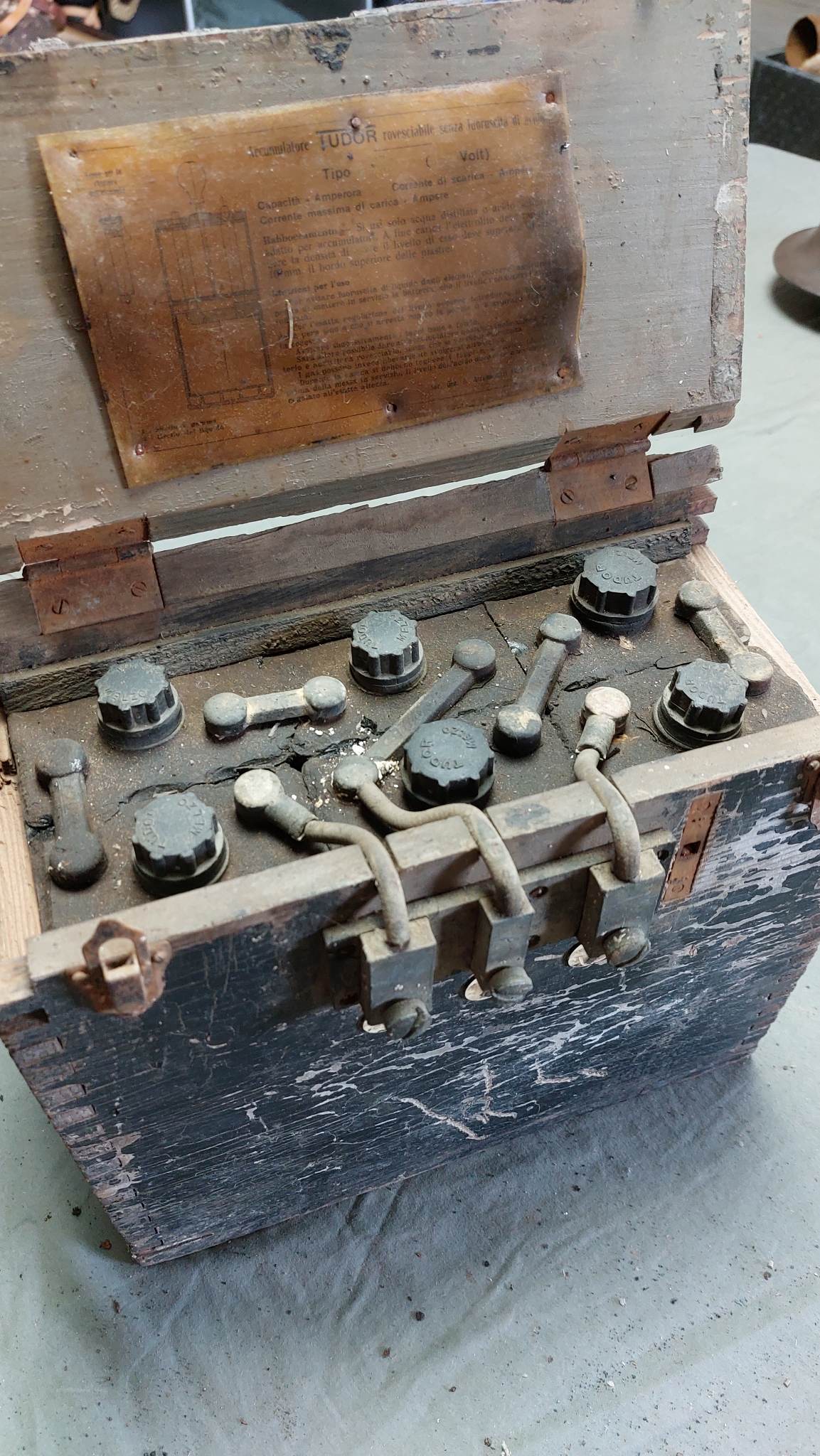

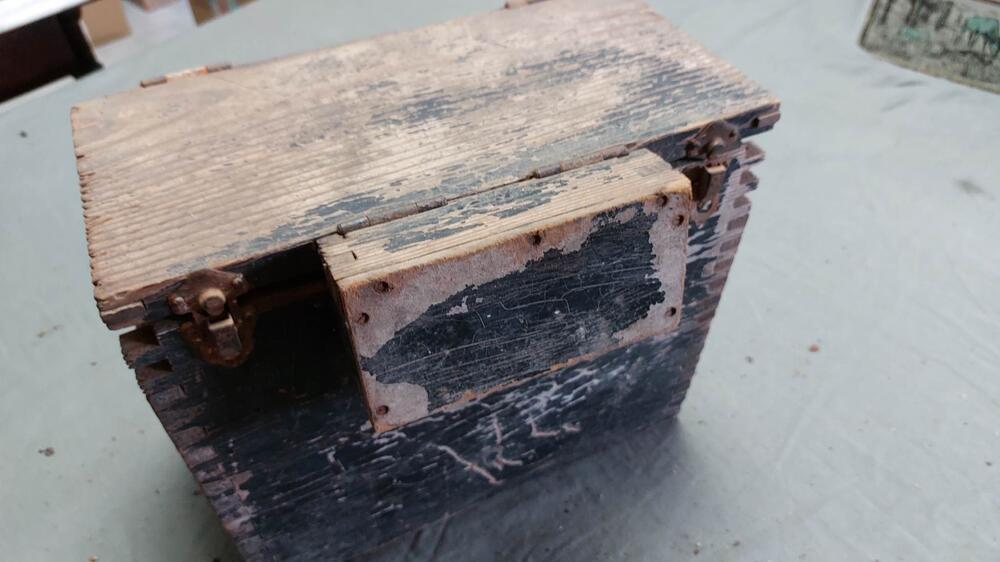

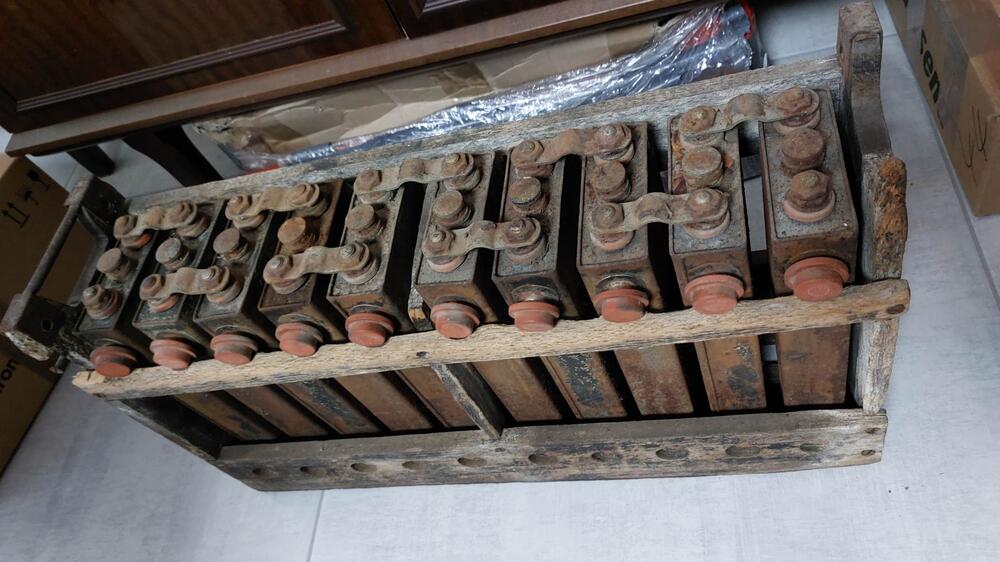

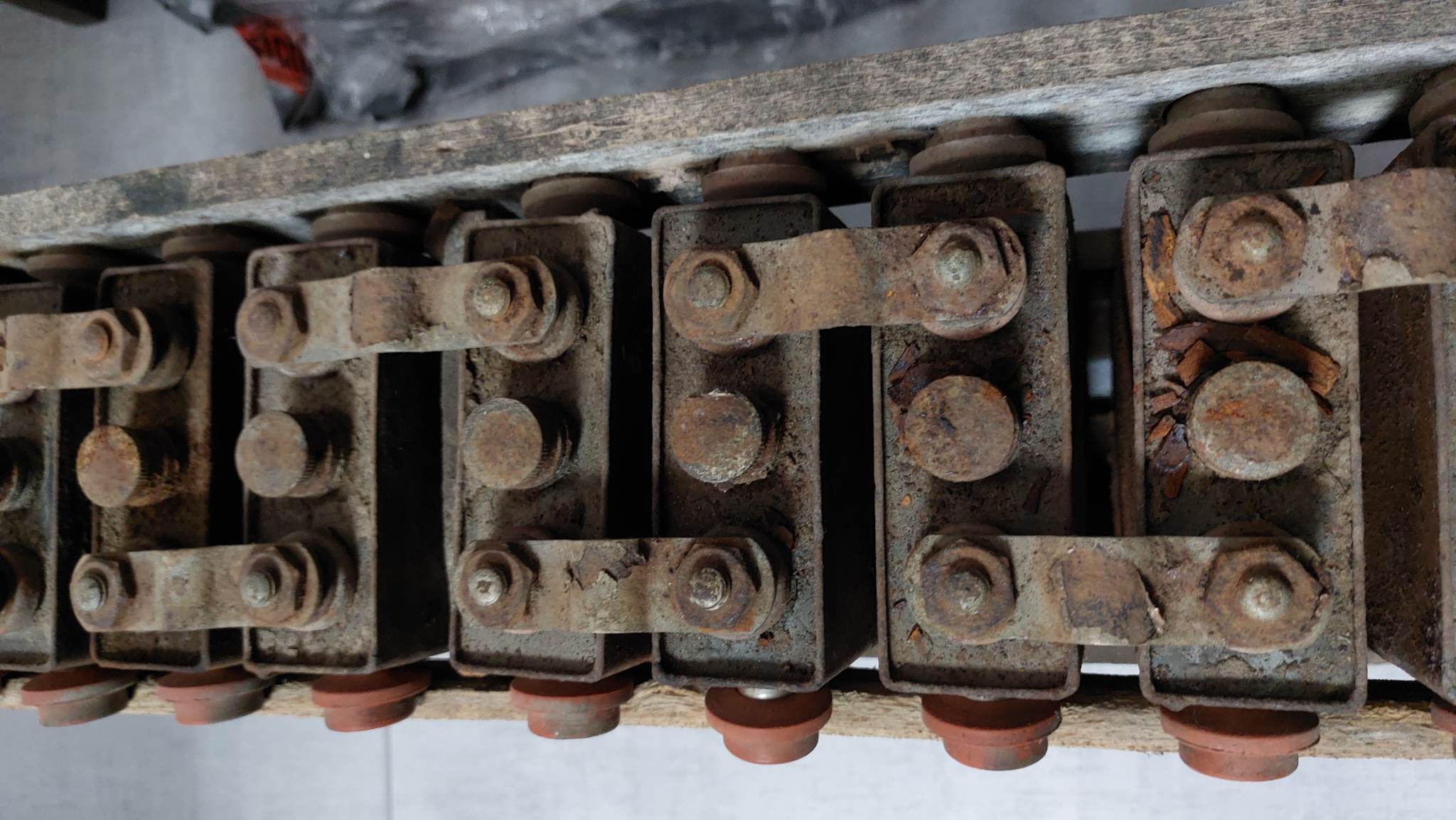

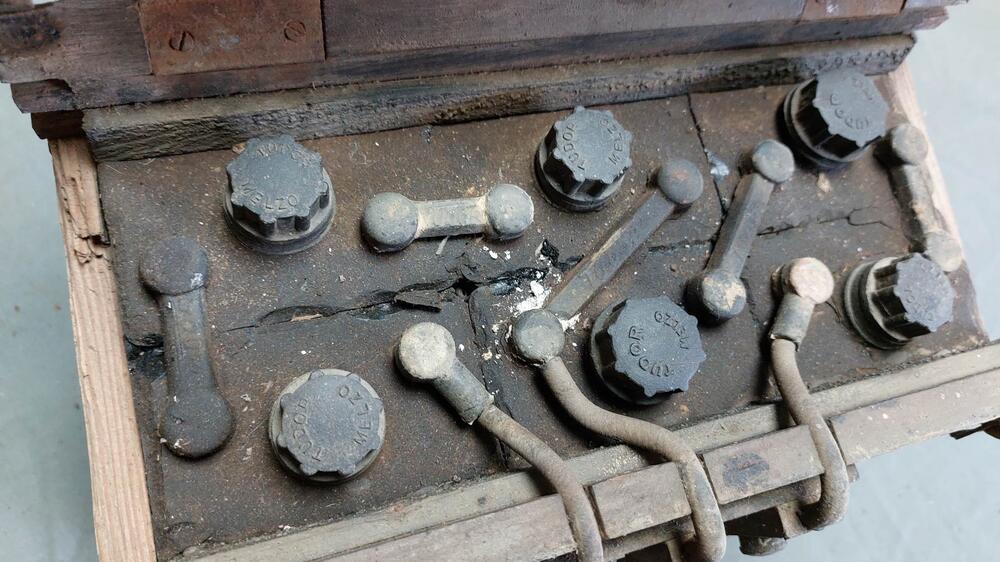

germanmedals Posted July 10, 2023 Posted July 10, 2023 hello. i have this 2 in my collection. can somebody tell me what exactly are they and possible collectors value? thanks
