Verlegewagen für Feldfernkabel

[val]

What was this cart official German name? Any close images?



[ChrisMAg2]

Hi Val,

acc to Funksammler in "German line communications equipment of WW2" (PDF) it is simply "cable cart for Schweres Feldfernkabel".

But I also found it in www.nachrichtentruppe.de/ labeled as "Wagenspule". I can't say which one is the more appropriate (if ever or at all) term.

It is for sure not a "Nachrichtengerätekarren".

Regards
Christian M. Aguilar

Edited September 9, 2019 by ChrisMAg2

[val]

@ChrisMAg2 thanks. Let's see what @Alperator has to say.

Actually this is the first photo i have seen this cart in such a details.

I'd love to see some survived/restored one in close.

[Alperator]

"Verlegewagen für Feldfernkabel"

my english is very bad, I hope Funksammler can explain this better.

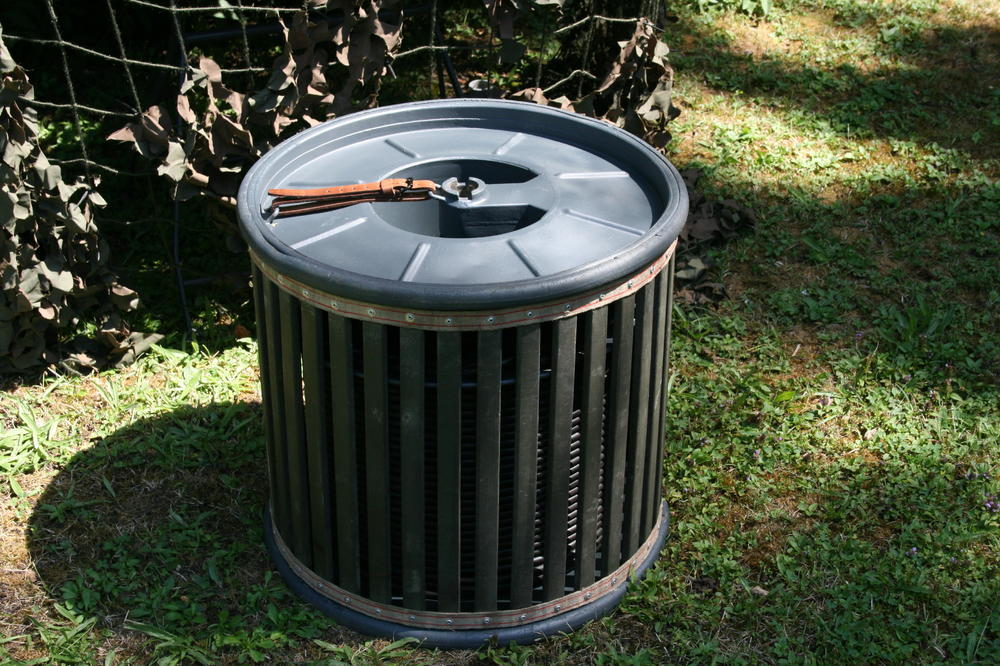

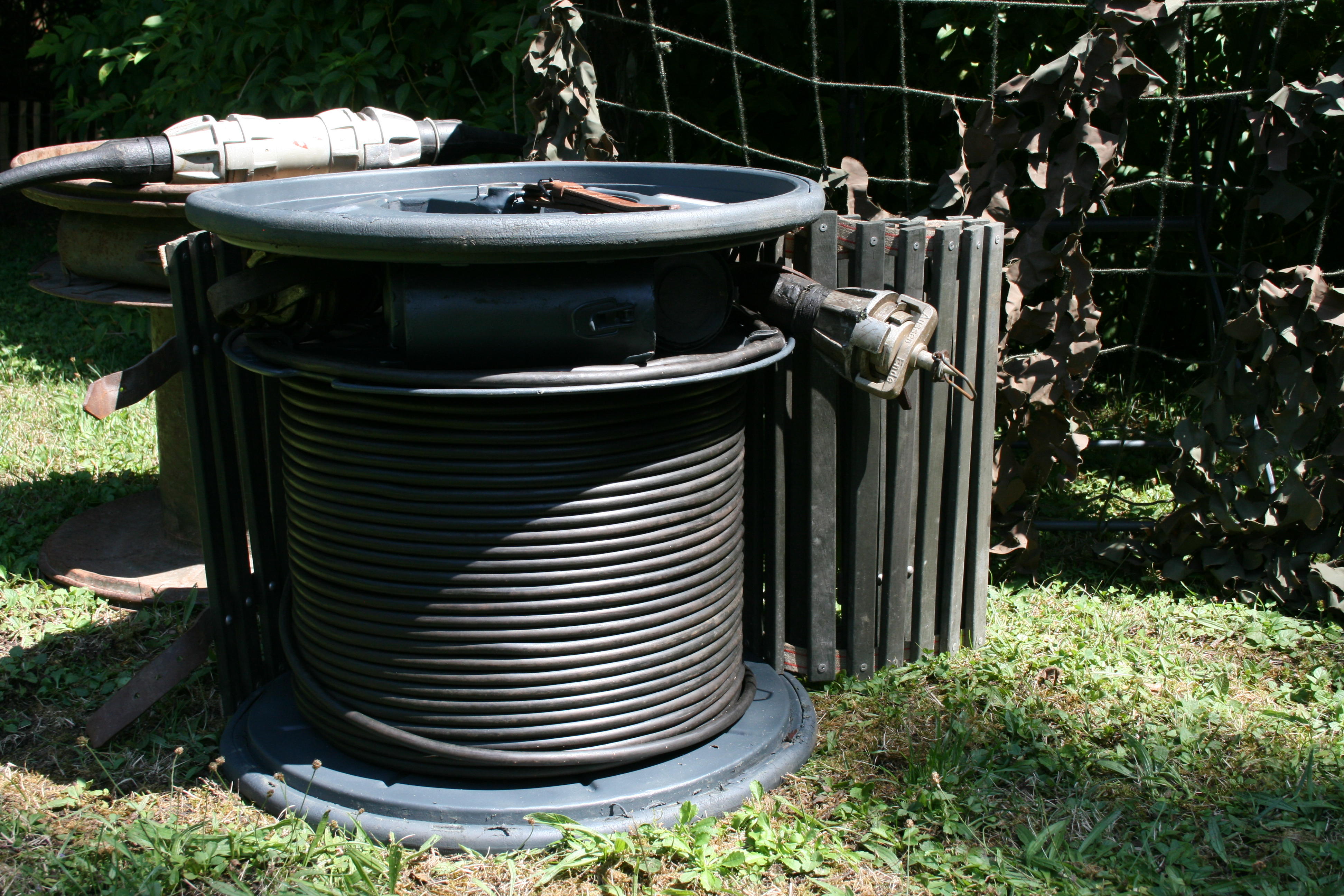

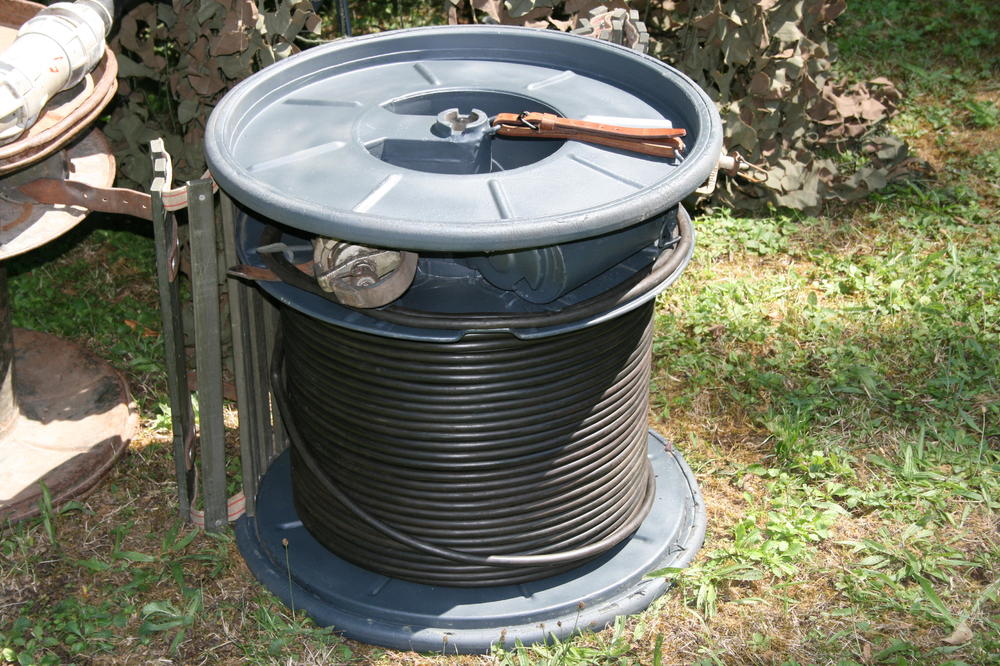

Unfortunately I don't have any pictures of the Verlegewagen, only of the cable drum for Feldfernkabel.

beautiful pictures of the Verlegewagen are also in the book of:

Jean-Francois Massieu

"La Telephonie Militaire Allemande 1935 - 1945"

[val]

Thank you @Alperator !!

Now we have also pictures, thanks, @ezesar !!

https://onedrive.live.com/redir?resid=C75367F00C42BA56!180&authkey=!ADiKr9Y3pvNkWBU&ithint=folder%2c.jpg

[Alperator]

thank you very much for the new pictures.

[val]

1 hour ago, Alperator said:

thank you very much for the new pictures.

I'm sure @ezesar allows to put those pictures on you website.

It would be nice if all the important info about FFK is at one place.

[Alperator]

4 hours ago, val said:

'm sure @ezesar allows to put those pictures on you website.

It would be nice if all the important info about FFK is at one place.

@ezesar:
I may see your pictures of the Verlegewagen on my website
Publish?, of course with your name and source.
Then almost all important information on the topic of Feldfernkabel is summarized.

@val, Thanks for the tip.

here I would like to insert the pictures:
http://der-fernmelder.de/feldfernkabel/

Thank you and have a nice evening.
Albert

[val]

How verlegewagen was transported

http://www.kfzderwehrmacht.de/Homepage_english/Trailers/Special_trailers/Sd__Ah__25/sd__ah__25.html

http://www.kfzderwehrmacht.de/Hauptseite_deutsch/Anhanger/Sonder-Anhanger/Sd__Ah__25/sd__ah__25.html

[val]

One period photo here.

http://www.lexikon-der-wehrmacht.de/Gliederungen/NachrichtenabteilungenKorps/KNA42.htm

And here.

https://upload.wikimedia.org/wikipedia/commons/e/e6/Bundesarchiv_Bild_101I-002-3362-13%2C_Russland%2C_Feldkabel_mit_Schlitten_verlegt.jpg

[ezesar]

On 10/09/2019 at 22:21, Alperator said:

@ezesar:
I may see your pictures of the Verlegewagen on my website
Publish?, of course with your name and source.
Then almost all important information on the topic of Feldfernkabel is summarized.

@val, Thanks for the tip.

here I would like to insert the pictures:
http://der-fernmelder.de/feldfernkabel/

Thank you and have a nice evening.
Albert

Hi Albert.

Here again since a lot of time ago. Sorry.

Well, I´d never thought that someday part of my material would be shown in your excellent and didactic page. I´vegot good info a lot of times from there.

Feel free to use my images to include them in Der Fernmelder. I will try to add several more from my last exhibition.

Some additional info. Those carts were used until beginning of 2000 decade by the Spanish Army to lay heavy two pairs field cable, first FFK from german adquisition in Spanish Civil War (1936-39) and "Plan BÄR" in 1943 and after spanish mfg. cable called AZO after its manufacturer in the town of Zaragoza that at the end, made a new 2 pairs cable under denomination C-1. When digital systems Signal programs were launched those cables and carts were decomissioned holding only US 26 pairs cable for digital systems  Signal stations.

Regards.

César

Edited September 28, 2019 by ezesar
I´ve forgot to add 1943 year for Plan BÄR

[ezesar]

Hi again.

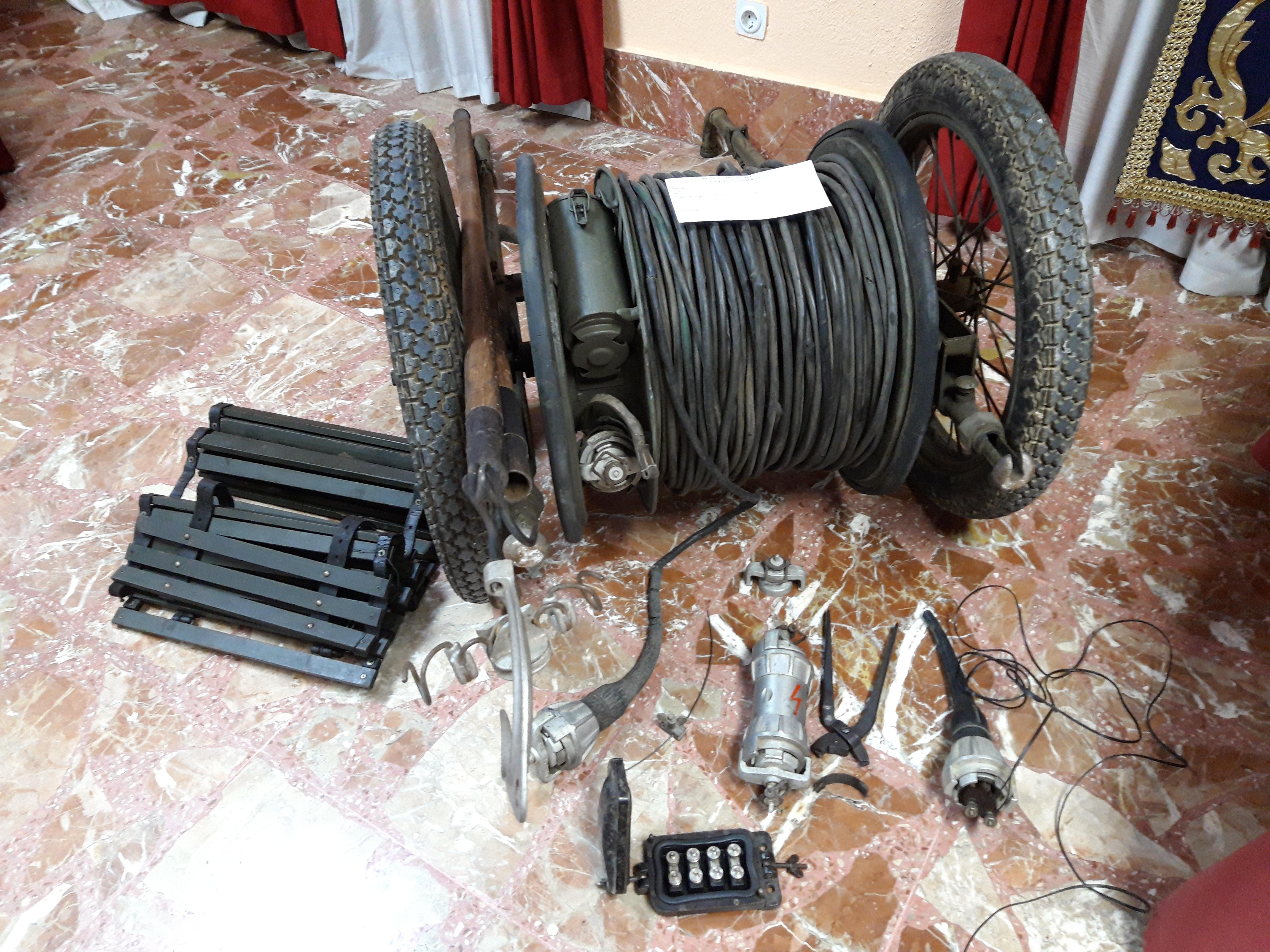

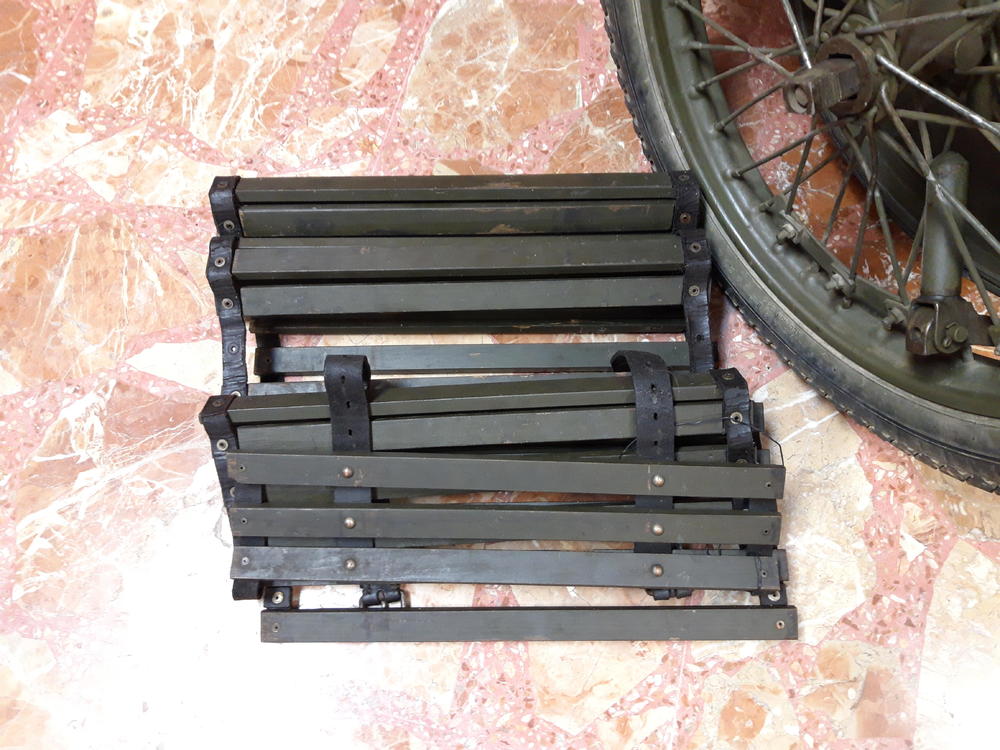

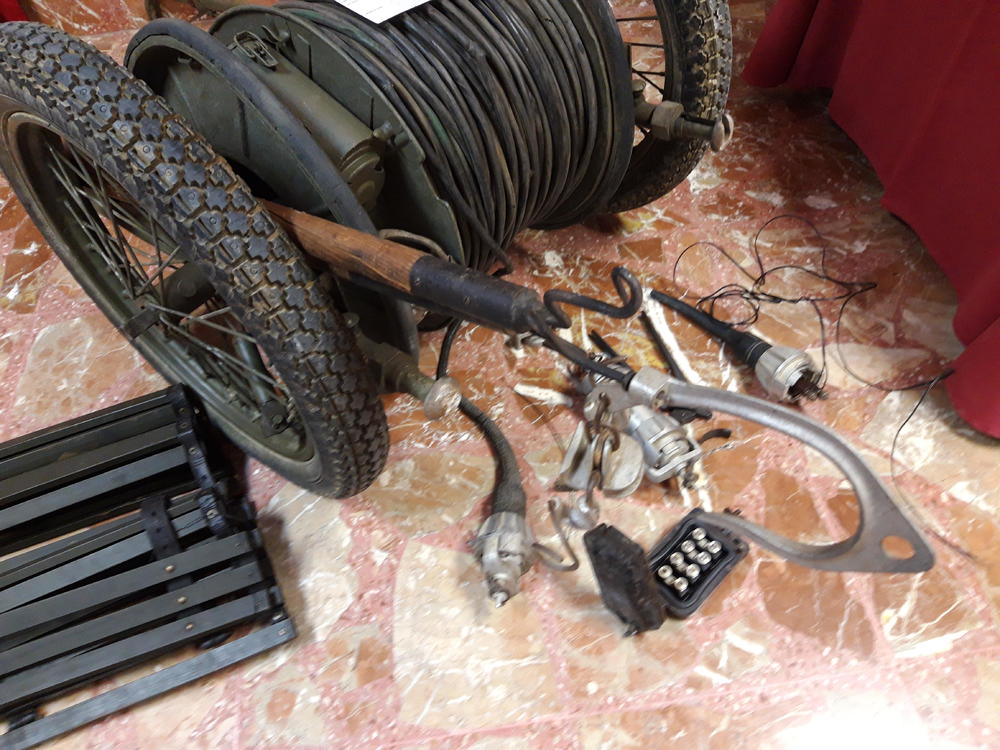

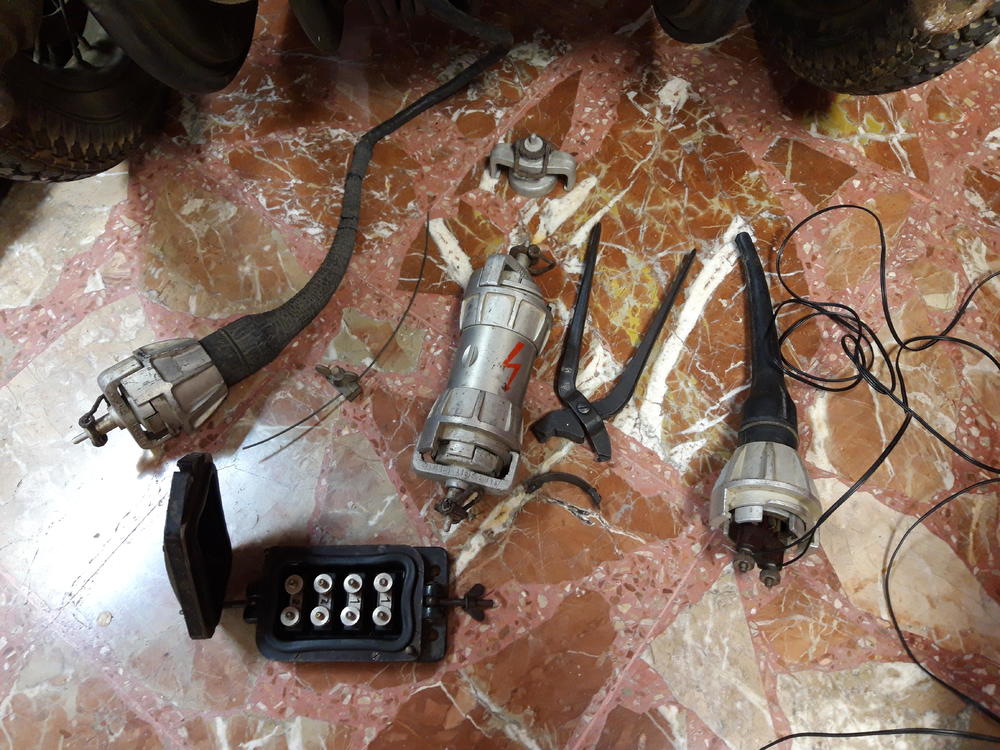

Images of my sFFK frommy last exhibition.



[val]

Very nice, @ezesar, thanks!!

[ezesar]

Nice to share info with all of you.

[val]

Verlegewagen and some cable drums ready for transportation.

http://www.kfzderwehrmacht.de/Hauptseite_deutsch/Verschiedenes/Kfz-Nummern/Kfz__ohne_Nummern/Lkw_fur_FF-Kabel/lkw_fur_ff-kabel.html
