KM verstärker

[tornfuté]

Can anybody help with this set? I have search for it and found only minors

details  bya is gema and i know it’s for marine use

[val]

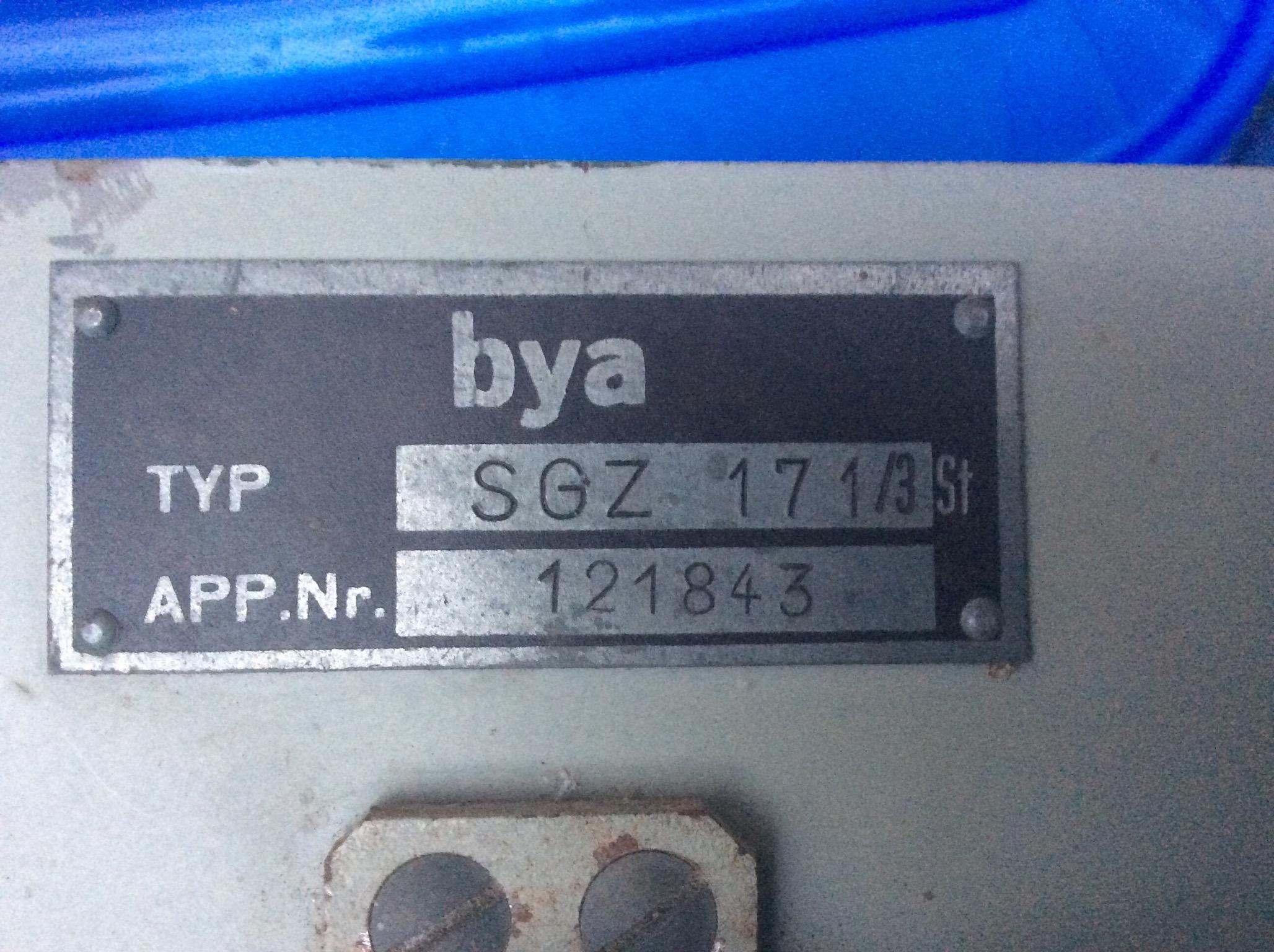

Can you show the type shield more closely?

[tornfuté]

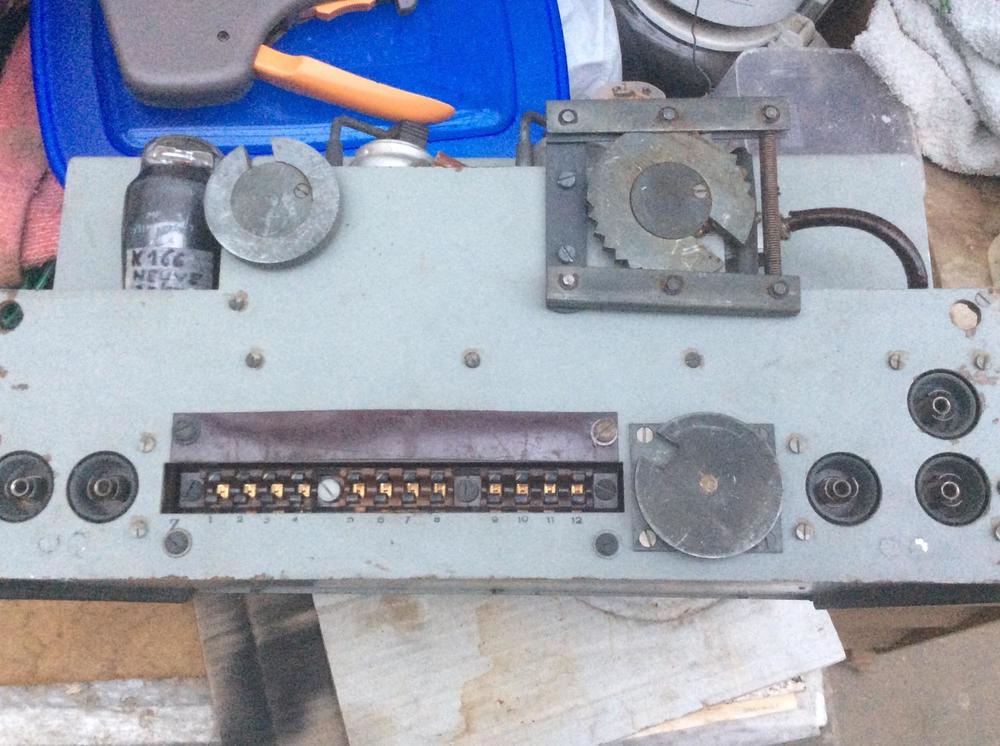

Some more pictures about the double amplifier

[val]

@tornfuté, see the attached book, SGZ is mentioned here.

"Brandt started the development of a small console in 1940. This unit contained the ‘Kino’ (motion-picture indicator) SGK, the twin amplifiers SGZ and power supply SGN."

gema-birthplace-of-german-radar-and-sonar.pdf

[tornfuté]

Thanks val very useful i will read it completely

i know it was a submarine device , i have found this:

wasserschallanlagen  Na326150 einschube fur G/H und J/K geraet

you can find it in cdtvandt kriegsmarine list  Na320-339

but your pdf will help me much better thanks for help

[val]

@tornfuté, i think the next step would be to find this book:

http://www.navy-history.com/Einzelexemplare/D/Die_Sonaranlagen_der_deutschen_U-Boote.html

ps. can you make a good photo of your SGZ frontplate so i can recognize it when

i see it on some picture? Thanks.

[tornfuté]

Val i agree with you i had listed this book it’s availlable on amazon

i just mind if Rossler decribe in details all the sonar types.

in your pdf i have find this , p83  sonar type 200 is using SGZ

i know submarine own a serie of 2x 12 microphone on the hull

and the twin amplifier is connected to amplifier  acoustic signals

then it’s displayed on mirror indicator .

Will do picture later of sgz

[tornfuté]

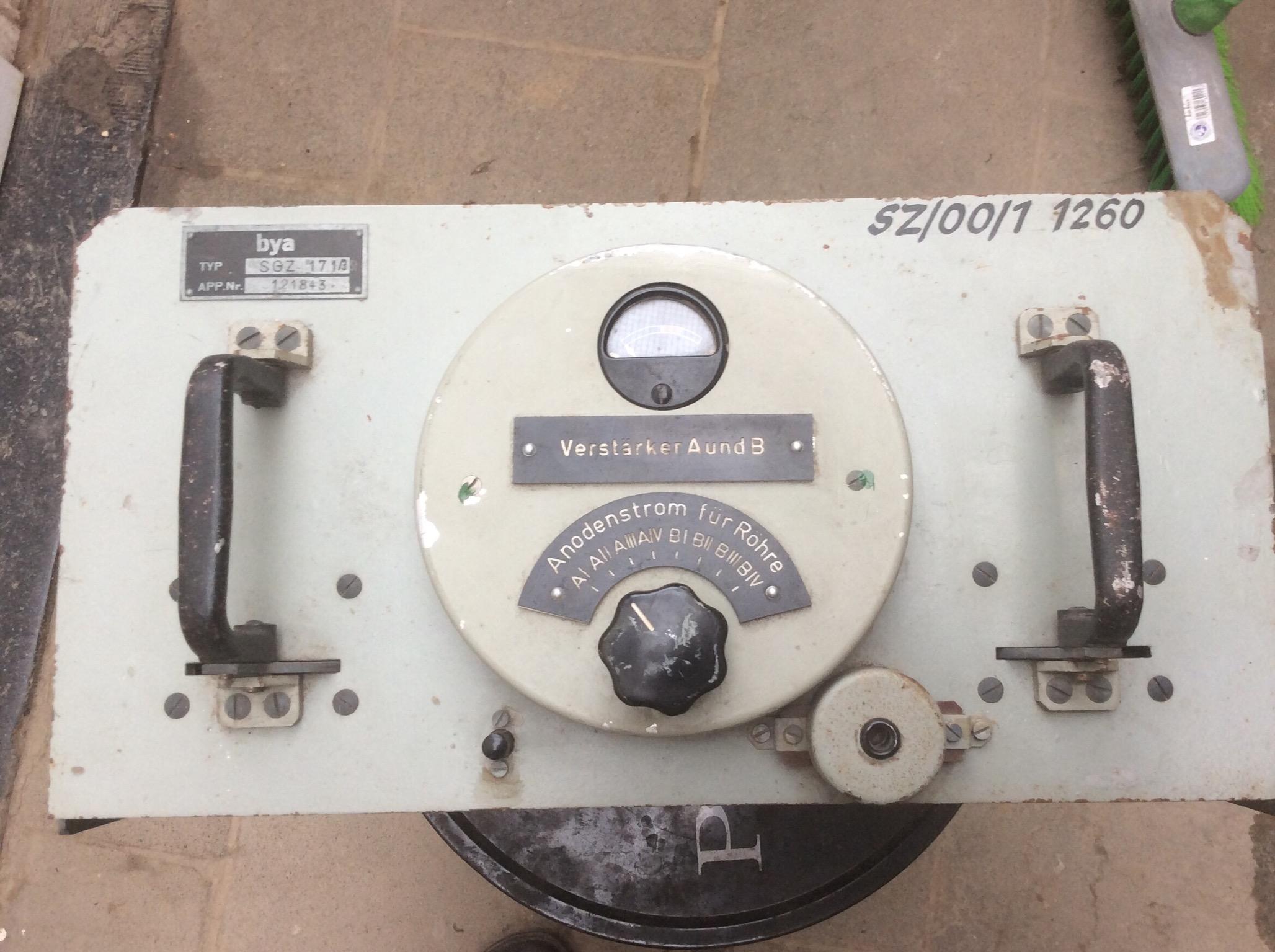

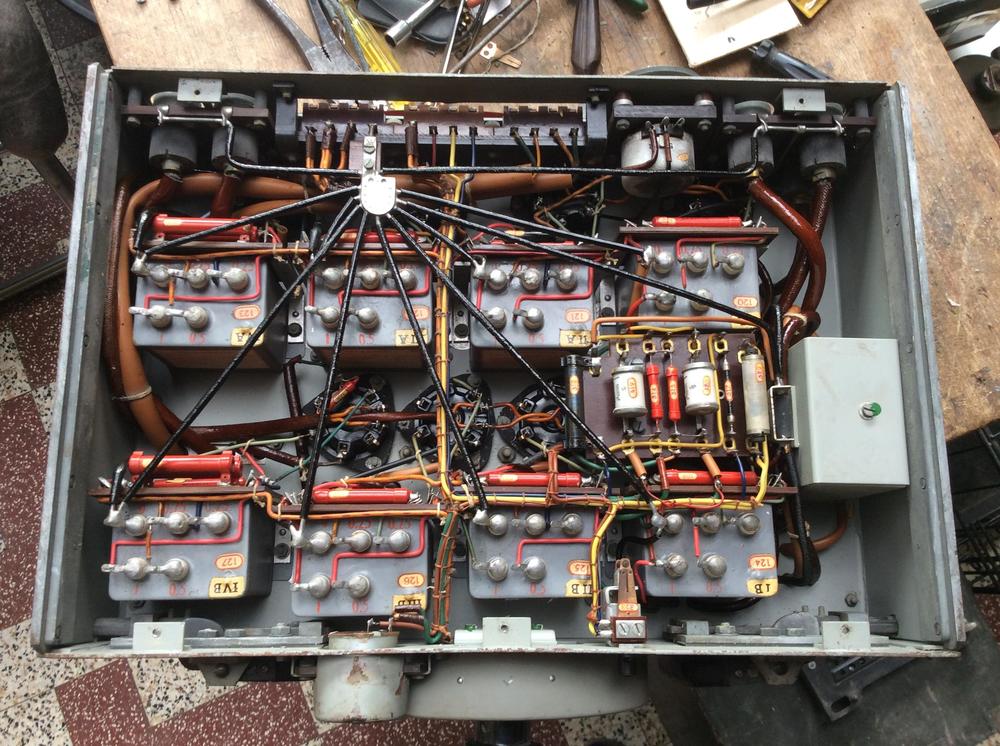

A front panel picture and also inside view of this dubbel amplifier

note all capacitors are made by Telegrafia in CZ

[val]

@tornfuté, i absolutely love how common wire is via the shortest path connected

to one single point. Just awesome!
