unknown devise in signals truck

[pamak]

Hello,



Does anybody know what is the devise immediately left of the teleprinter and under the lamp?



Thank you





[pamak]

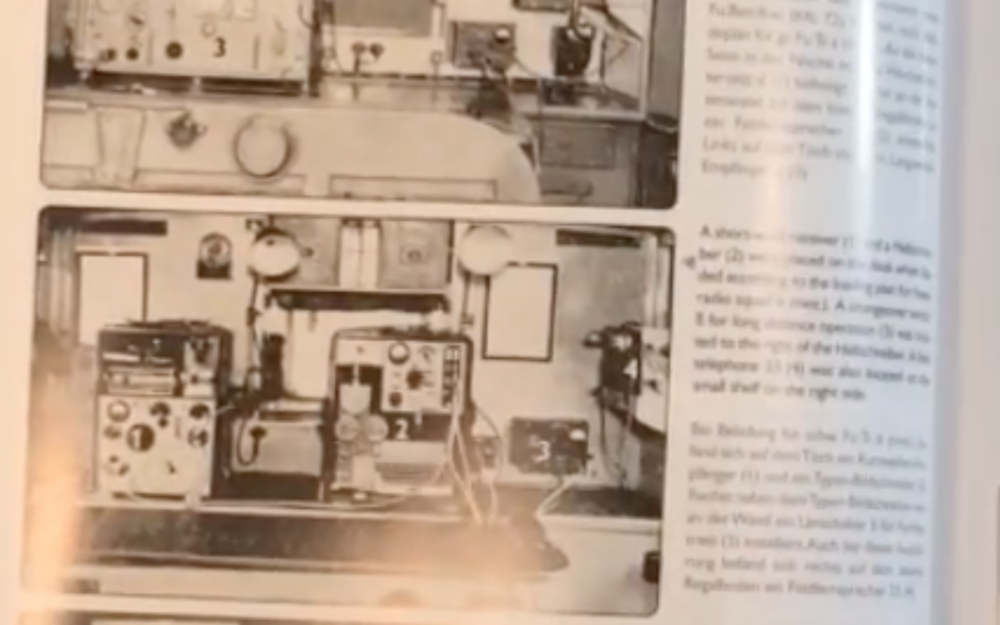

While I was searching for this, I found that the "Nuts & Bolts" Vol 32 has a   better picture of the same  setting with some commentary. I do not have the book and since it does not number the devise, it may not have any relative info. In any case, from a review video in youtube  in low resolution, one can see the same devise





Edited December 16, 2020 by pamak

[Funksammler]

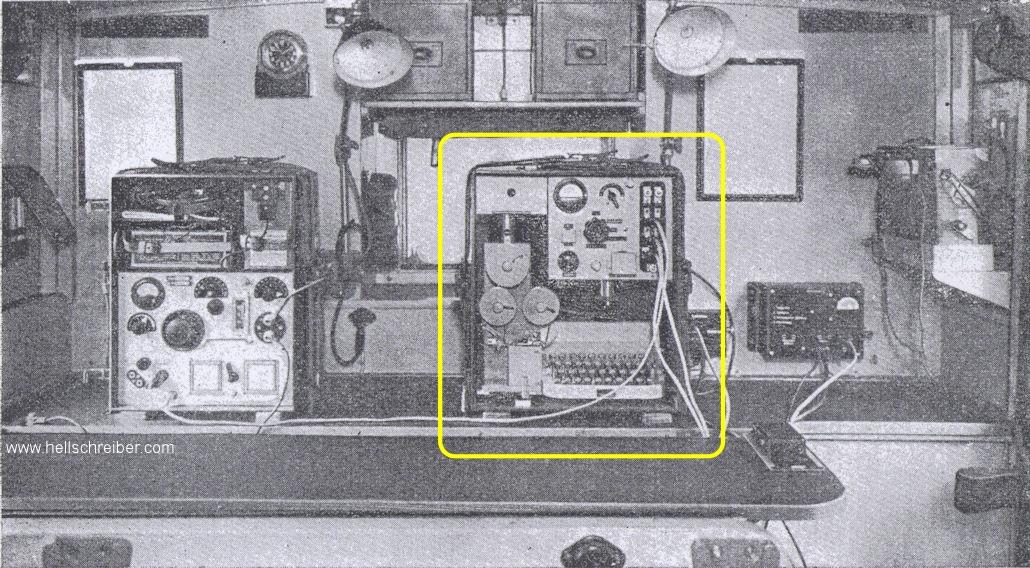

I am not sure what you are refering to, the unit in the yellow square is an early type of Feldfernschreiber. Left of it is a E445Bs Tornister Empfänger.

regards,

Funksammler



[pamak]

On 25/09/2020 at 06:11, Funksammler said:

I am not sure what you are refering to, the unit in the yellow square is an early type of Feldfernschreiber. Left of it is a E445Bs Tornister Empfänger.

regards,

Funksammler



Thank you for the reply!

I will try to  be specific because I think you are talking about the items numbered "1" and "2" at the bottom image  (from Nuts & Bolts" Vol 32 ) in my second post.

Based on your answer and from my very basic understanding of the German communications equipment,  I understand that the unit marked as "2" is a  Feldfernschreiber and the unit  marked as "1" is the E445Bs Tornister Empfänger.

Now, if you notice in the bottom image of my second post , there is a third item  between item "1" and item "2" which is not numbered  and  does not even look like a radio or teletype equipment of any kind.  It is this item which I try to identify. This unidentified item is right below the left desk lamp.



Thank you again  for the reply, and I am sorry for the slow response.



Pamak

Edited December 16, 2020 by pamak

[Funksammler]

On 16/12/2020 at 08:54, pamak said:

Thank you for the reply!

I will try to  be specific because I think you are talking about the items numbered "1" and "2" at the bottom image  (from Nuts & Bolts" Vol 32 ) in my second post.

Based on your answer and from my very basic understanding of the German communications equipment,  I understand that the unit marked as "2" is a  Feldfernschreiber and the unit  marked as "1" is the E445Bs Tornister Empfänger.

Now, if you notice in the bottom image of my second post , there is a third item  between item "1" and item "2" which is not numbered  and  does not even look like a radio or teletype equipment of any kind.  It is this item which I try to identify. This unidentified item is right below the left desk lamp.



Thank you again  for the reply, and I am sorry for the slow response.



Pamak

I can just see the back wall between the receiver and the Feldfernschreiber. It has a Bosch 12V socket for the Midgard lamp but that is about it...

regards,

FS

[pamak]

On 18/01/2021 at 13:15, Funksammler said:

I can just see the back wall between the receiver and the Feldfernschreiber. It has a Bosch 12V socket for the Midgard lamp but that is about it...

regards,

FS

Thanks for the reply!



Apparently, because it is a frontal picture and lacks depth perspective, I saw the back wall as an additional instument betweeen the receiver and the Feldfernschreiber. I was especially confused by the white, narrow horizontal stripe which I saw it as some type of a dial display.

Edited January 27, 2021 by pamak
spelling
